 Energy storage system for solar power (ESS) refers to the device of converting electrical energy from power systems into a form that can be stored for converting back to electrical energy when needed.



Villa,Hotel,Residential electricity,Hospital,Museum,Church,Farm





Product Datasheet



Residential Hybrid Inverter Single Phase LEI-3K / 3.6K / 4K/ 4.6K / 5K / 6K-SL-A



Product Features:

Compatible with various batteriesperfect protection function & strong environmental adaptability

Wide DC input voltage range design

Light weight, natural cooling and low noise

Ingress protection IP65, wall mounted design

Battery reverse polarity protection

Compatible anti-backflow function

Seamless switching between off-grid and on-grid

Multi-period charge and discharge designguarantee user’s investment income

Household intelligent energy management terminal





WORKING MODES

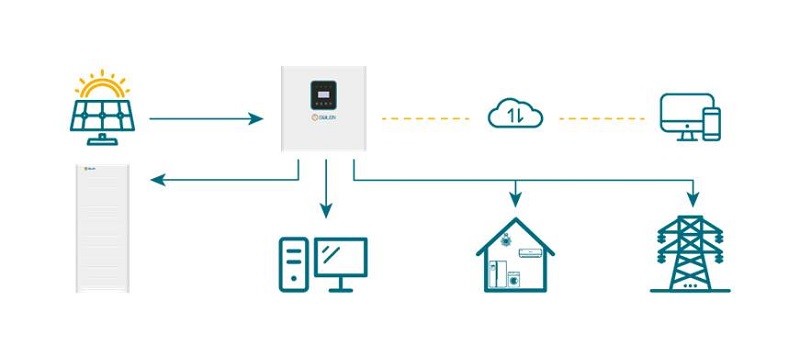

Self-consumption Mode

   Throughout the day, the power generated by PV system will supply household loads first , and then saving surplus energy to battery that can be used at any time, the excess electricity could be exported to grid.

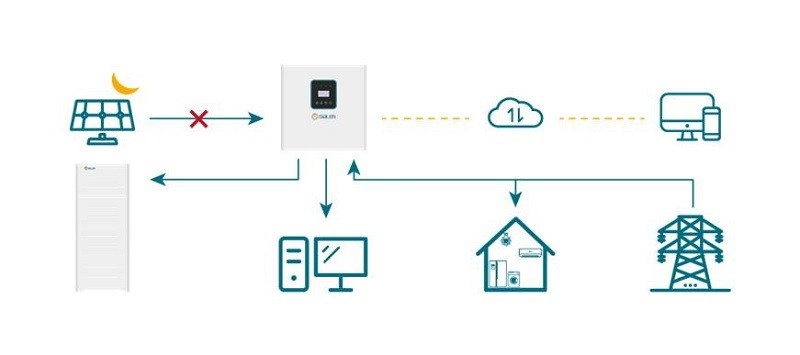

Time-of-use Mode
   Battery charging and discharging time can be flexibly set based on your local peak and off-peak electricity period to minimum the electricity bills.




Backup Mode
   Back-up mode is able to maintain the battery in a charged state. When power outage happens, the battery discharges to power the backup loads.





Technical Specifications



Model

LEI-3K-SL-A

LEI-3.6K-SL-A

LEI-4K-SL-A

LEI-4.6K-SL-A

LEI-5K-SL-A

LEI-6K-SL-A

PV Input

Max. Input Power [W]

4600

6000

7000

Max. Input Voltage [V]

550

MPPT Voltage Range/Rated Voltage [V]

125~500/360

PV Input Current [A]

14/14

Number of MPPTs

2/1

Battery

Max. Charge Voltage [V]

58

Battery Voltage Range [V]

40~58

Max. Charge/Discharge Current [A]

95/104.2

Battery Type

LithiumLead-acid

Communication

CAN

AC Output

Rated Output Power [VA]

3000

3600

4000

4600

5000

6000

Max. Output Current [A]

13

16

17.4

20

21.7

26

Grid Voltage Range [V]

230/176~270

Grid Frequency [Hz]

50/60

Power Factor

1 (0.99 leading~0.99 lagging can be set)

THDi (Rated Power)

<3%

Grid Connection Type

L+N+PE

Backup AC Output (EPS)

Rated Power [VA]

3000

3600

4000

4600

5000

6000

Rated Output Current [A]

13

16

17.4

20

21.7

26

Rated Output Voltage [V]

230

Rated Output Frequency [Hz]

50/60

Switch Time

<20ms

THDu

<2%

Overload Capacity

110%,60s/120%,30s/150%,10s

Efficiency

Max Efficiency

97.6%

Euro Efficiency

97%

MPPT Efficiency

99.9%

General Data

Ingress Protection

IP65

Noise [dB]

<35

Temperature Range [℃]

-25~+60

Cooling Method

Natural cooling

Relative Humidity

0~95%,no condensation

Altitude [m]

 No derating <2000

Dimension (W*D*H) [mm]

550*200*515

Weight [kg]

26

Display

LCD

Communication

RS485,Wifi,GPRS,CAN,DRM

Certification

CE,TUV,SAA,IEC62116:2014,IEC61683:1999
