72 M6 MBB 435-460W Solar PV Module

72 M6 MBB 435-460W Solar PV Module
72 M6 MBB 435-460W Solar PV Module

72 M6 MBB 435-460W Solar PV Module

Special cutting and soldering half-cell technology with multi-busbar configuration of the solar panel offers higher conversion efficiency and power output, lower hotspot risk, better temperature-dependent performance, reduced shading effect on the energy generation, as well as enhanced tolerance for mechanical loading.

  • Cell :

    6x24 mono solar cell
  • Junction Box :

    IP≧68, TUV&UL
  • Cable&Connector :

    4mm², TS4 / MC4-EV02
  • Cable Length :

    300mm or as customer's requirements
  • Weight :

    23.5kg
  • Packing :

    30pcs/pallet
  • Loading Capacity :

    150pcs/20GP 660pcs/40HC
Product Datasheet

72 M6 MBB 435-460W Solar PV Module



Grade A solar cells to ensure all are high efficient.

Good price, low cost as industry chain integration with scale effect.

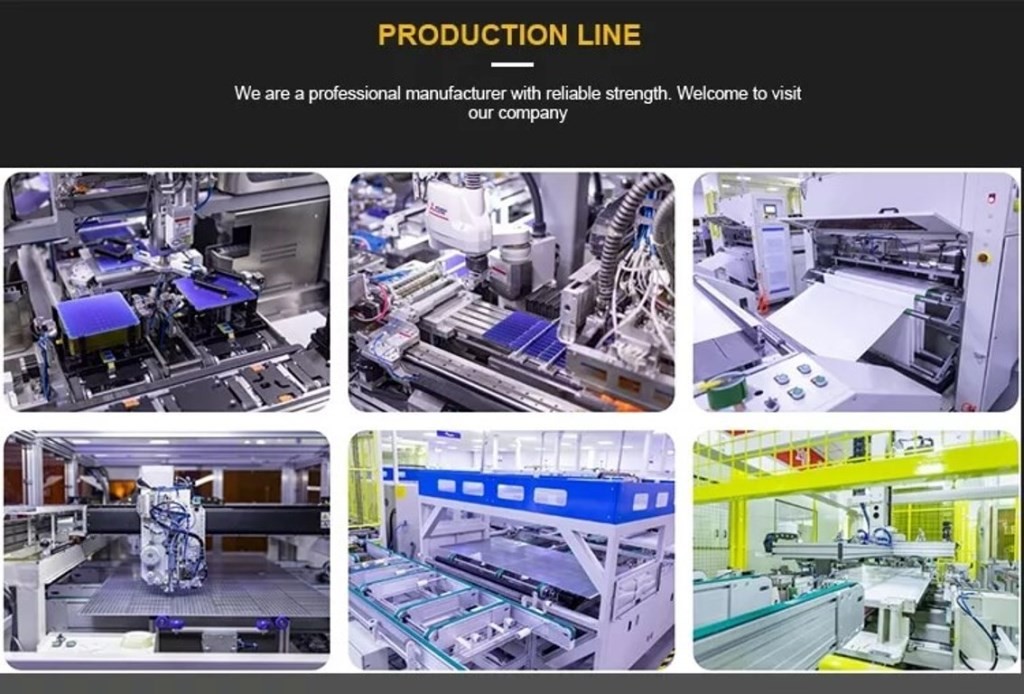

A fully automated production process, each solar panel is tested strictly.

More than 10 years’ experience in PV industry, with 2,500 square meters production base.

Please don’t hesitate to contact us to get a free quotation or any other wondering thing at any time.



Key Features

MBB Half Cut Cell With PERC Technology

Higher Power Output

Better Low-light Performance

Less Shading Effect

PID Resistance



Technical Specifications

Module Type

ZHS1-144-435M

ZHS1-144-440M

ZHS1-144-445M

ZHS1-144-450M

ZHS1-144-455M

Test Environment

STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

Maximum Power (W)

435

325

440

328

445

332

450

336

455

339

Open Circuit Voltage (V)

48.5

45.6

48.7

45.8

48.9

46

49.1

46.2

49.3

46.4

Short Circuit Current ( A)

11.42

9.21

11.48

9.26

11.54

9.31

11.6

9.36

11.66

9.41

Maximum Power Voltage (V)

40.5

37.8

40.7

37.9

40.9

37.9

41.1

38.1

41.3

38.5

Maximum Power Current ( A)

10.75

8.59

10.82

8.65

10.82

8.65

10.89

8.71

11.02

8.82

Module Efficiency (%)

20.01

20.24

20.24

20.47

20.93

Tolerance

0-+5W

Maximum System Voltage

1500V(IEC)

Temp. Coeff. of Voc

-0.270 %/°C

Temp. Coeff. of lsc

0.048%/°C

Temp. Coeff. of Pm

-0. 350 %/°C

Operating Temperature

40 to 85°C

Nominal Operating Cell Temperature (NOCT)

452 °C

Max. Series Fuse

20A

STC: Irradiance 1000W/ /'    Cell Temperature 25 °C    AM=1.5     NOCT: Irradiance  800W/'    Ambient Temperature 20°C    AM=1.5   Wind Speed 1m/s

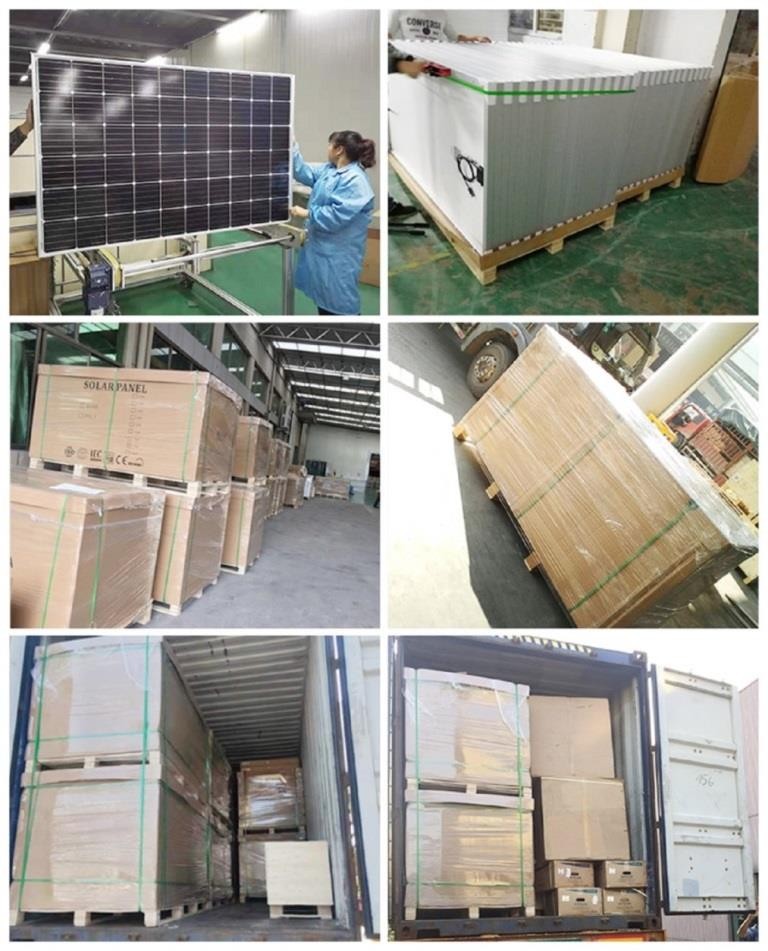

Products Packaging&Loading



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
References

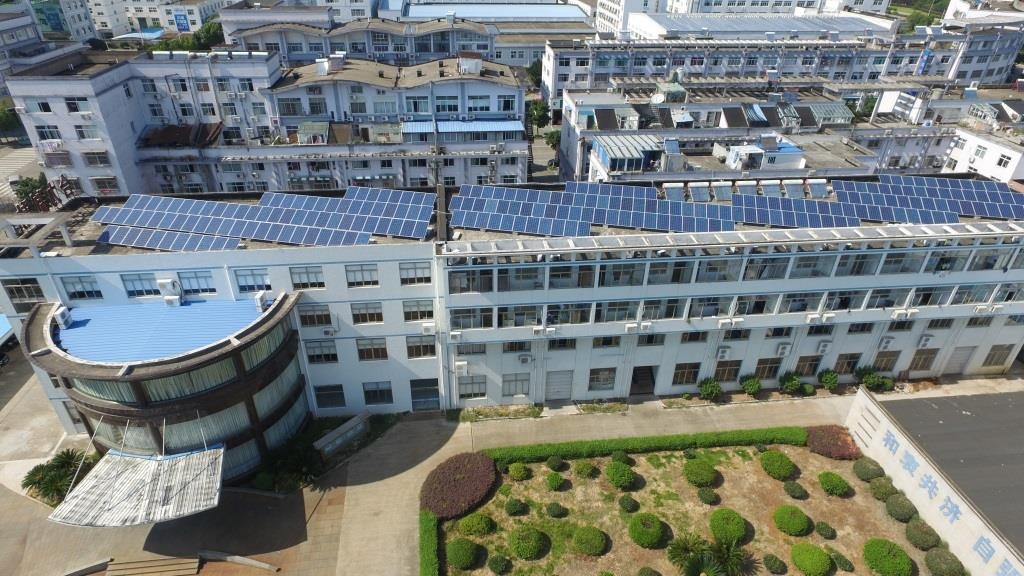

  • 300kW Commercial Rooftop PV Power Plant

    300kW Commercial Rooftop PV Power Plant

    Read More

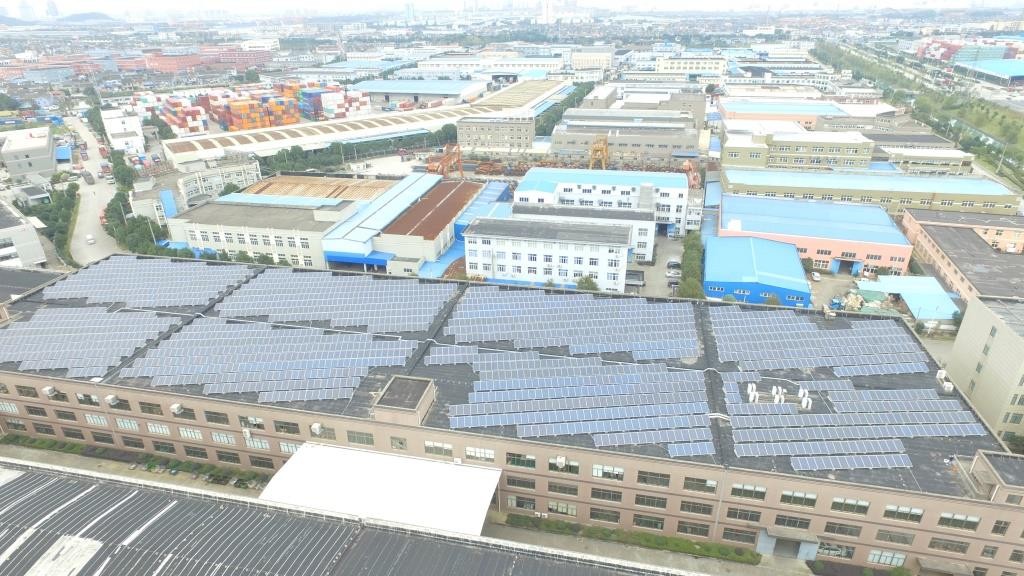

  • 530kW Industrial Rooftop PV Power Plant

    530kW Industrial Rooftop PV Power Plant

    Read More

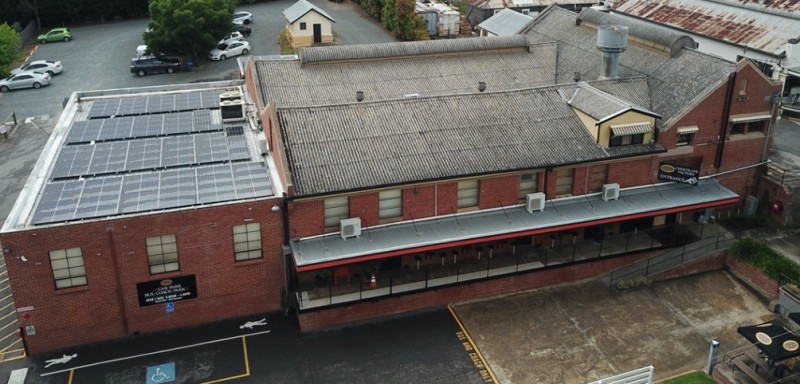

  • 30kW Commercial Rooftop PV Power Plant

     30kW Commercial Rooftop PV Power Plant

    Read More

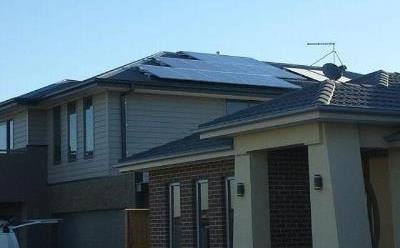

  • 6kW Residential Rooftop PV Power Plant
