LEI-30K / 50K / 60K / 100K / 125K / 150K-TT
Product Features
Can be used in high-altitude, alpine areas
Multi-channel PV MPPT access to improve power generation utilization
Power frequency topology, industrial design
Wide DC input voltage range design, compatible with various batteries
High-performance DSP, optimized control circuit design, better performance
Intelligent management control strategy, multiple working modes, online or remote switching
Cold start with load, three-phase 100% unbalanced load, strong load adaptability
Support diesel generator access, seamless switching between on-grid and off-grid (optional)
AC and DC dual power backup, ensure the power supply of the control system
Microgrid,PV power station,Factory,Mine,Hospital,Fram,Hotel

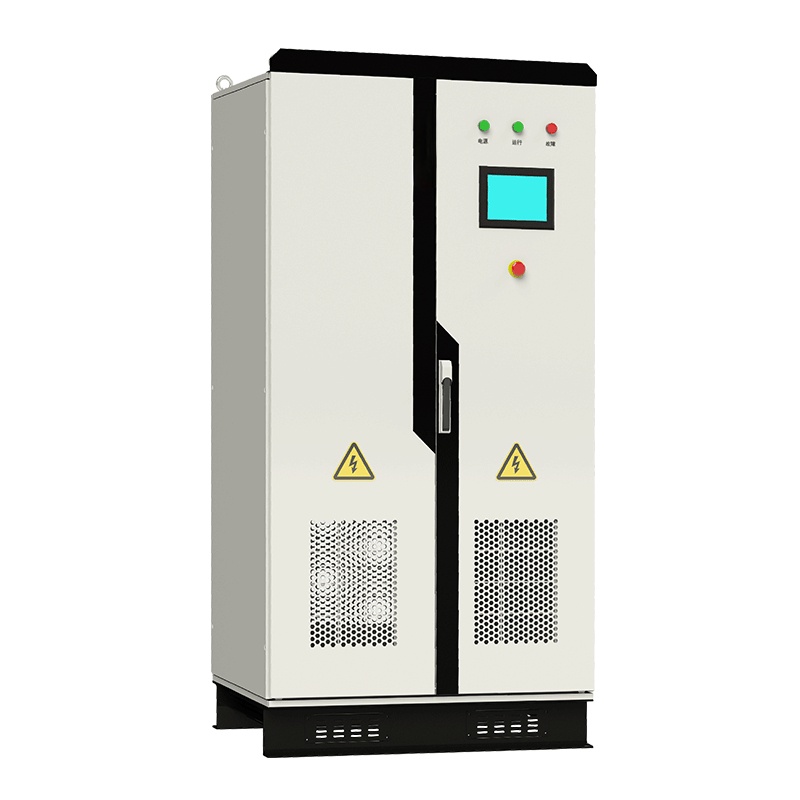

Commercial Hybrid Inverter (Built-in Transformer) LEI-30K / 50K / 60K / 100K / 125K / 150K-TT
Working Mode:

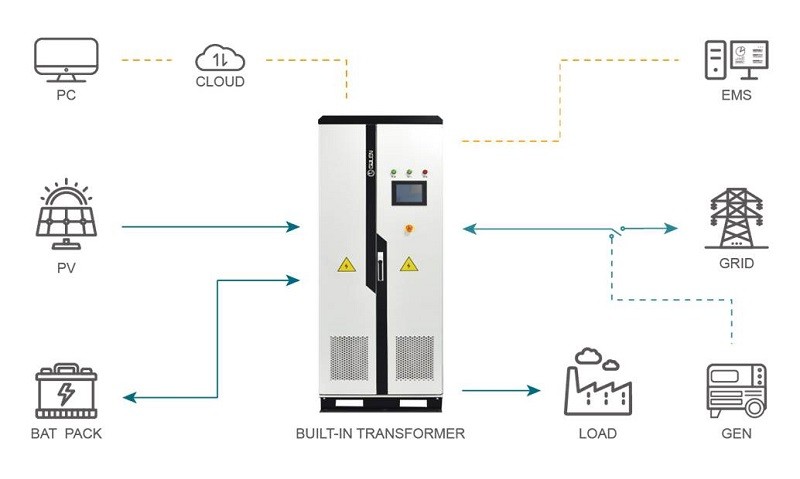

Product application scenario & schematic diagram
Technical Specifications
|
Model |
LEI-30K-TT |
LEI-50K-TT |
LEI-60K-TT |
LEI-100K-TT |
LEI-125K-TT |
LEI-150K-TT |
|
DC Input (PV) |
|
|
|
|
|
|
|
Max. Input Voltage [V] |
850 |
|||||
|
MPPT Voltage Range [V] |
600~850 |
|||||
|
Number of MPPTs |
3 |
|||||
|
Max. Input Power Per MPPT [kW] |
10 |
20 |
30 |
|||
|
DC Input (Battery) |
|
|
|
|
|
|
|
Battery Type |
Lithium,Lead-Carbon,Lead Acid etc |
|||||
|
Operating Voltage Range [V] |
320~600 |
400~600 |
||||
|
AC Output (Grid-side) |
|
|
|
|
|
|
|
Rated Output Power [kW] |
30 |
50 |
60 |
100 |
125 |
150 |
|
Max. Output Apparent [kVA] |
33 |
55 |
66 |
110 |
137 |
165 |
|
Rated Grid Voltage [V] |
3/N/PE,230/400 |
|||||
|
Rated Grid Frequency [Hz] |
50/60 |
|||||
|
AC Output (Loads) |
|
|
|
|
|
|
|
Rated Output Power [kW] |
30 |
50 |
60 |
100 |
125 |
150 |
|
Max. Output Apparent [kVA] |
33 |
55 |
66 |
110 |
137 |
165 |
|
Overload Capacity |
110% for Ten Minutes,120% for One Minutes |
|||||
|
Rated Grid Voltage [V] |
3/N/PE,230/400 |
|||||
|
Rated Grid Frequency [Hz] |
50/60 |
|||||
|
THDi |
<3% (Rated power) |
|||||
|
Unbalanced Load Capacity |
100% |
|||||
|
Protection |
|
|
|
|
|
|
|
AC Short Circuit Protection |
Yes |
|||||
|
DC Reverse Polarity Protection |
Yes |
|||||
|
Surge Protection |
Yes (PV-side & Grid-side) |
|||||
|
Efficiency |
|
|
|
|
|
|
|
Max. Efficiency |
92% |
93.0% |
94.0% |
|||
|
General Data |
|
|
|
|
|
|
|
Dimensions (W*D*H)[mm] |
950*700*1953 |
1200*800*2050 |
||||
|
Net Weight [kg] |
650 |
650 |
800 |
900 |
1050 |
1250 |
|
Isolation Transformer |
Yes |
|||||
|
Temperature Range [℃] |
-30~+55 |
|||||
|
Shutdown Self power Consumption [W] |
<50 |
|||||
|
Cooling Method |
Forced air cooling |
|||||
|
Installation Style |
Cabinet Installation |
|||||
|
Ingress Protection |
IP20 |
|||||
|
Relative Humidity |
0~95%,non-condensing |
|||||
|
Max. Altitude [m] |
5000 (>3000 Derating) |
|||||
|
Display Mode |
Touch screen |
|||||
|
Dispatching Communication Mode |
Ethernet,RS48 |
|||||
|
BMS Communication Mode |
RS485,CAN |
|||||
|
Communication Protocol |
Modbus-RTU/TCP |
|||||
