Portable Solar Panel (CSSP)

Portable Solar Panel (CSSP)
Portable Solar Panel (CSSP)
Portable Solar Panel (CSSP)
Portable Solar Panel (CSSP)
Portable Solar Panel (CSSP)

Portable Solar Panel (CSSP)



Portable Foldable Solar Panel Mat with industrial-strength PET polymer or ETFE as the surface are sewn into ultra-durable polyester canvas to provide weather-resistant, ideal for any outdoor activities such as camping, hiking, picnic.

Product Datasheet

Portable Solar Panel

Our 70W-280W Portable Folding Solar Panel is a  monocrystalline solar panel with a higher conversion efficiency of up to 23.5%, compared with the market average 20%, It will produce more kilowatt-hours of electricity in the available area, and performs better even in low-light conditions.

With long-lasting ETFE material on the surface, it becomes more hard-wearing and scratch-resistant, while the IP65 waterproof standard makes it ideal for outdoor activities such as camping, fishing, hiking. (Please do not soak it in the water.

The Portable Folding Solar Panel is equipped with the MC4/Anderson/DC connector and is designed to be compatible with most solar generators on the market with suitable charging connector. The Portable Folding Solar Panel is convenient to carry around and easy to be set up for anyone anywhere.





ZHSOLAR PORTABLE SOLAR PANELCSSP

Folding Module

CSSP-F2-70W

CSSP-F2-100W

CSSP-F2-140W

CSSP_F4-140W

CSSP-F4-200W

CSSP-F4-280W

Encapsulation

ETFE / EVA / Cell / EVA/ Fiberglass

Maximum Power Pmax

70W

100W

140W

140W

200W

280W

Maximum Power Voltage (Vmp)

18V

18V

18V

18V

18V

18V

Maximum Power Current(lmp)

3.89A

5.56A

7.78A

7.78A

1.11A

15.56A

Open Circuit Voltage (Voc)

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

Short Circuit Current (lsc)

4.28A

6.11A

8.56A

8.56A

12.22A

17.11A

Cell Efficiency

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

Dimension

860x540x20mm

1185x540x20mm

1185x708x20mm

1590x540x20mm

2275x540x20mm

2260x708x20mm

Dimension When Folded

540x430x30mm

540x593x30mm

708x593x30mm

540x430x40mm

540x593x40mm

708x593x40mm

Weight

2.25KG

2.6KG

3.8KG

4KG

5KG

6.1KG

Tolerance

±3%

Max System Open Circuit voltage

1000V

Controller

PMW/MPPT

Operate Temperature Range

-40~+85

Relative Humidity

0~100%

Accessories

1.PMW controller x1

2.5 meter cable with Anderson or MC4 connector x1

3.30cm cable of alligator clip with Anderson connector x1

4. User Manual x1

5.OEM/ODM

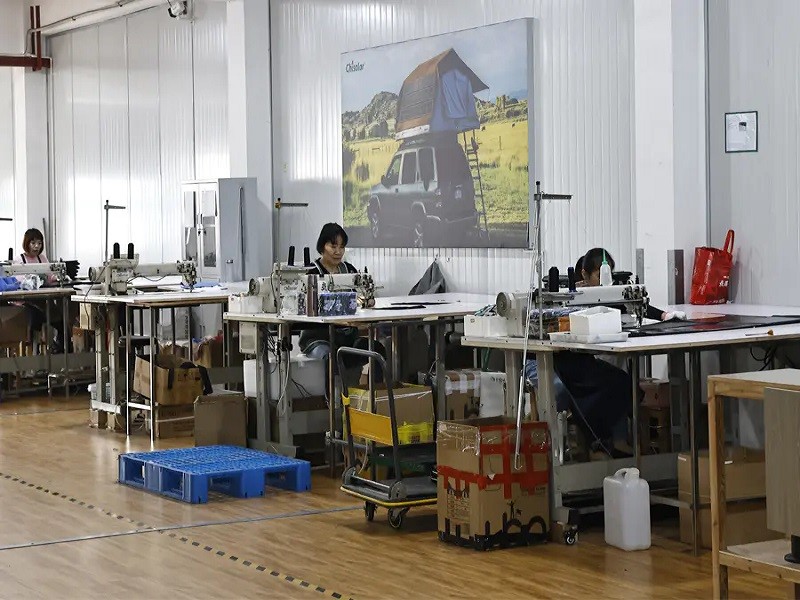

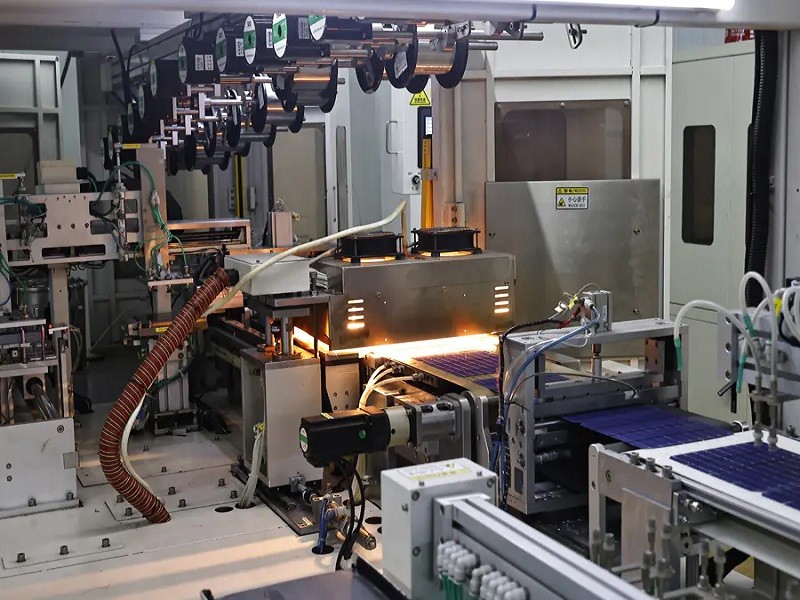

Production Line
