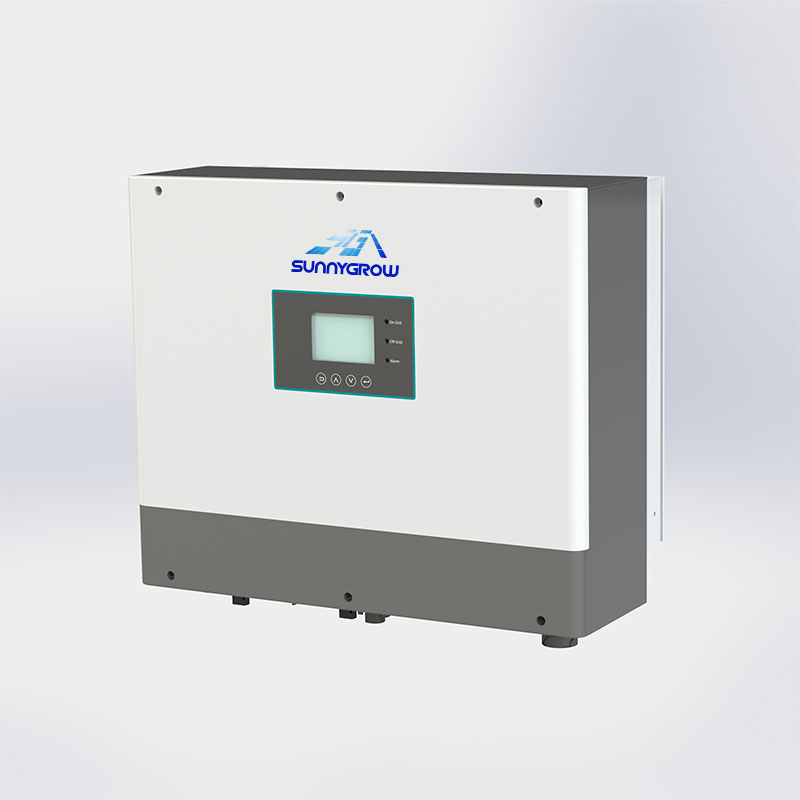

Residential Hybrid Inverter Single Phase 6K 8K 10K 12K

Residential Hybrid Inverter Single Phase 6K 8K 10K 12K
Residential Hybrid Inverter Single Phase 6K 8K 10K 12K
Residential Hybrid Inverter Single Phase 6K 8K 10K 12K

Residential Hybrid Inverter Single Phase 6K 8K 10K 12K



 Energy storage system for solar power (ESS) refers to the device of converting electrical energy from power systems into a form that can be stored for converting back to electrical energy when needed.



Villa,Hotel,Residential electricity,Hospital,Museum,Church,Farm

Product Datasheet

Residential Hybrid Inverter (Single Phase) LEI-6K / 8K / 10K / 12K-SL

Product Features:

Compatible with various batteriesperfect protection function & strong environmental adaptability

Wide DC input voltage range design

Multi-channel PV MPPT access to improve power generation utilization

Light weight, natural cooling and low noise

Ingress protection IP65, wall mounted design

Battery reverse polarity protection

Compatible anti-backflow function

Seamless switching between off-grid and on-grid

Max. efficiency up to 98.2%

Multiple working modeSelf-use mode, Time-of-use mode, Timing mode, Passive mode

Remote monitoring of PC and mobile phones







WORKING MODES

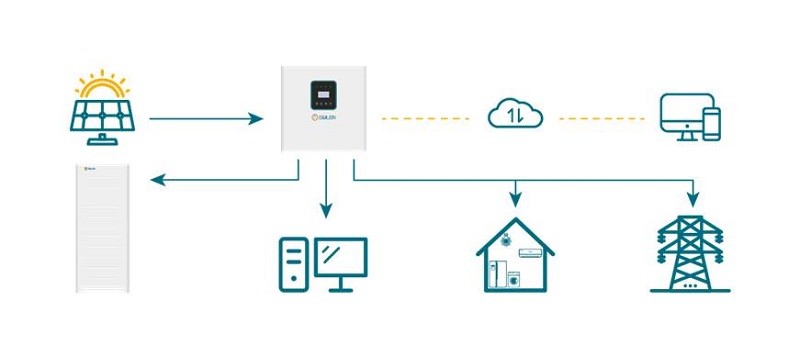

Self-consumption Mode
    Throughout the day, the power generated by PV system will supply household loads first , and then saving surplus energy to battery that can be used at any time, the excess electricity could be exported to grid.

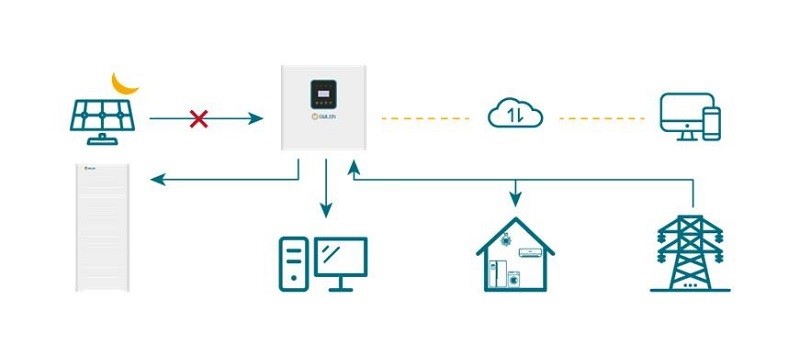

Time-of-use Mode
    Battery charging and discharging time can be flexibly set based on your local peak and off-peak electricity period to minimum the electricity bills



Backup Mode
    Back-up mode is able to maintain the battery in a charged state. When power outage happens, the battery discharges to power the backup loads.





Technical Specifications



Model

LEI-6K-SL

LEI-8K-SL

LEI-10K-TL

LEI-12K-TL

PV Input

PV Input Power [W]

7800

10400

13000

15600

Start-up Voltage [V]

120

Max. PV Input Voltage [V]

500

MPPT Voltage Range [V]

125~500

MPPT Working Voltage For Full Load [V]

264~460

352~460

220~460

264~460

MPPT Number/Max. Number Of Strings Per Channel

4/2

Max. MPPT Input Current [A]

24(12/12)

Battery

Battery Type

Lithium,Lead-acid

Number Of Battery Input

2

Battery Voltage Range [V]

85~460

Battery Voltage Range For Full Load [V]

100~ 460

150~460

200~ 460

250~ 460

Max Charge&Discharge

Current [A]

80/80

Communication

CAN/RS485

Charging Strategy For Battery

According to BMS Instructions/Stages (Lead-acid)

AC Output (Grid-side)

Rated Output Power [W]

6000

8000

10000

12000

Max. Output Power [VA]

6600

8800

11000

13200

Rated Output Voltage [V]

±120/240

Grid Voltage Range [V]

211~264

Max. Output Current [A]

25

30.3

41.6

50

AC Output Frequency [Hz]

50/60 (45~54.9/54.9~65)

Power Factor

1 (0.8 leading~0.8 lagging)

THDi (Rated Power)

<3%

Backup AC Output (EPS)

Rated Backup Output Power [VA]

6000

8000

10000

12000

Max. Backup Output Power [VA]

7500 60s,9000 1s

10000 60s,12000 1s

12500 60s,15000 1s

15000 60s,18000 1s

Max. Output Current [A]

31.2

41.6

52

62.5

Backup Output Voltage [V]

110~120/220~240 Split Phase

AC Frequency [Hz]

50/60 (±0.2%)

THDu (@linear load)

<3%

Switch Time

<10ms

Efficiency

Max. Efficiency

98.2%

General Data

Temperature Range [℃]

-25~+60

Relative Humidity

0~95%

Altitude [m]

0~4000 (>2000 derating)

Cooling Method

Smart fan cooling

Noise [dB]

<40

Display

LCD

Communication

RS485 (Standard);Wi-Fi/GPRS/Ethernet (Option)

BMS Communication

RS485/CAN

Weight [kg]

32

Dimension (W*D*H) [mm]

660*200*530

Installation Style

Wall-mounted

Ingress Protection

IP65

Standby Self Consumption [W]

<10

Grid Standard

VDE4105/EN50549

Safety Standard

CE/IEC62109

Protection

DC Lightning Protection

Yes

AC Lightning Protection

Yes

PV Reverse Polarity Protection

Yes

Battery Reverse Protection

Yes

Insulation Resistor Detection

Yes

Leakage Current Detection

Yes

Anti-island Protection

Yes

Grounding Fault

Yes

Input Overvoltage & Undervoltage

Yes

Output Overvoltage & Undervoltage

Yes

Input Over Current

Yes

Output Over Current

Yes

Overheat Protection

Yes
