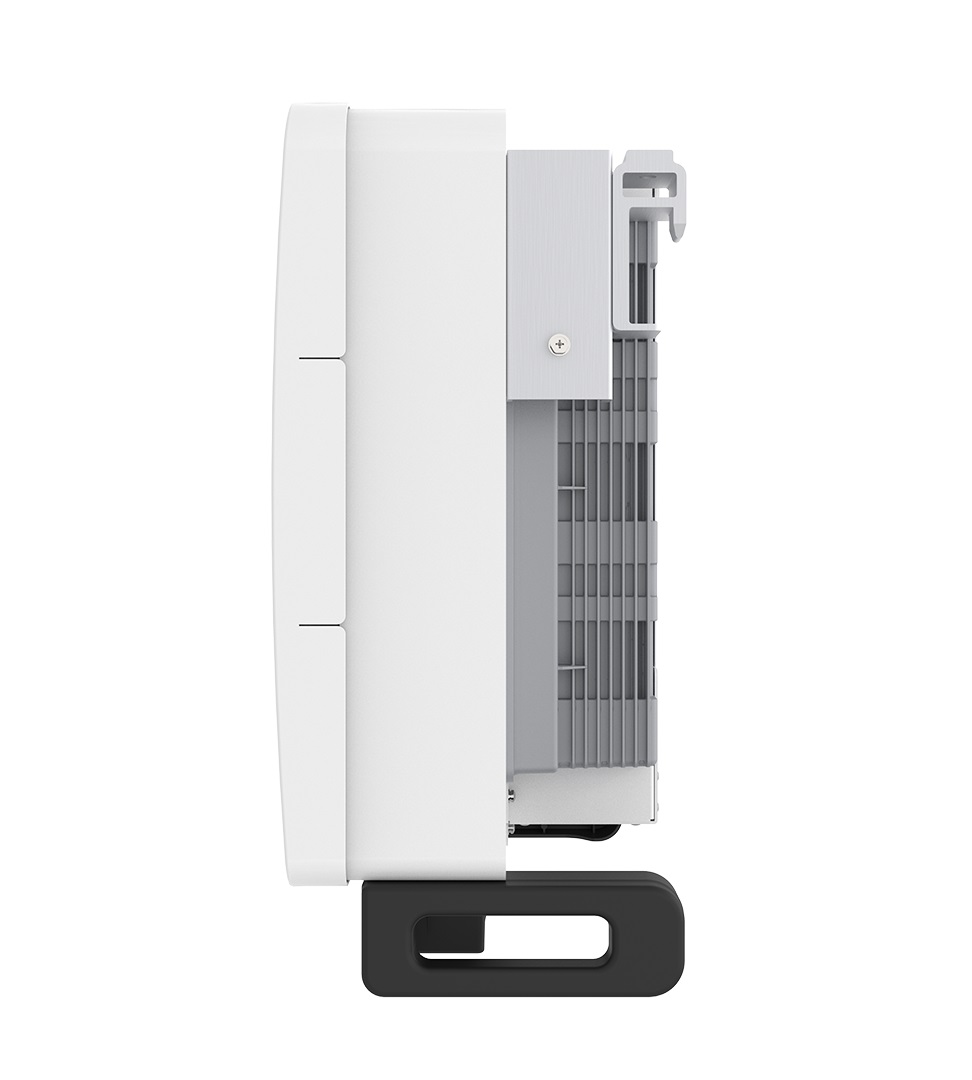

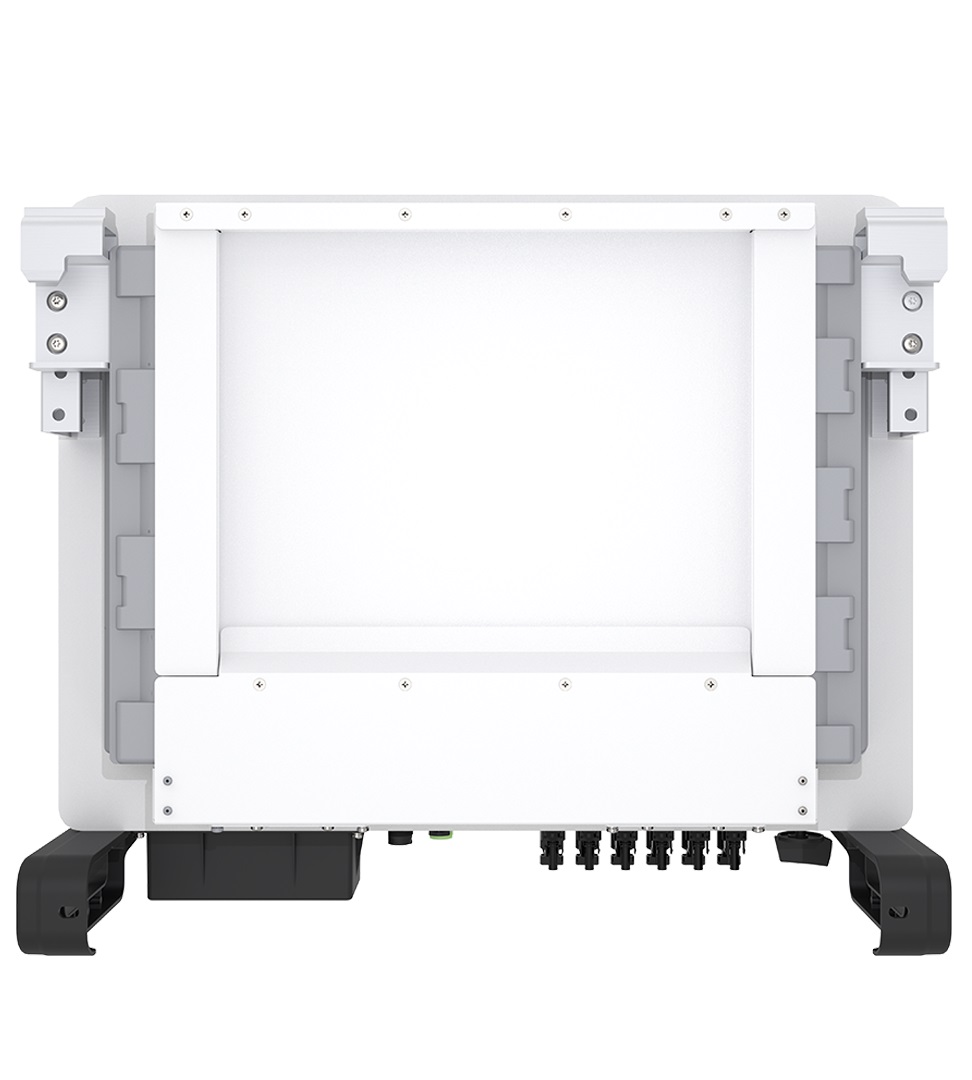

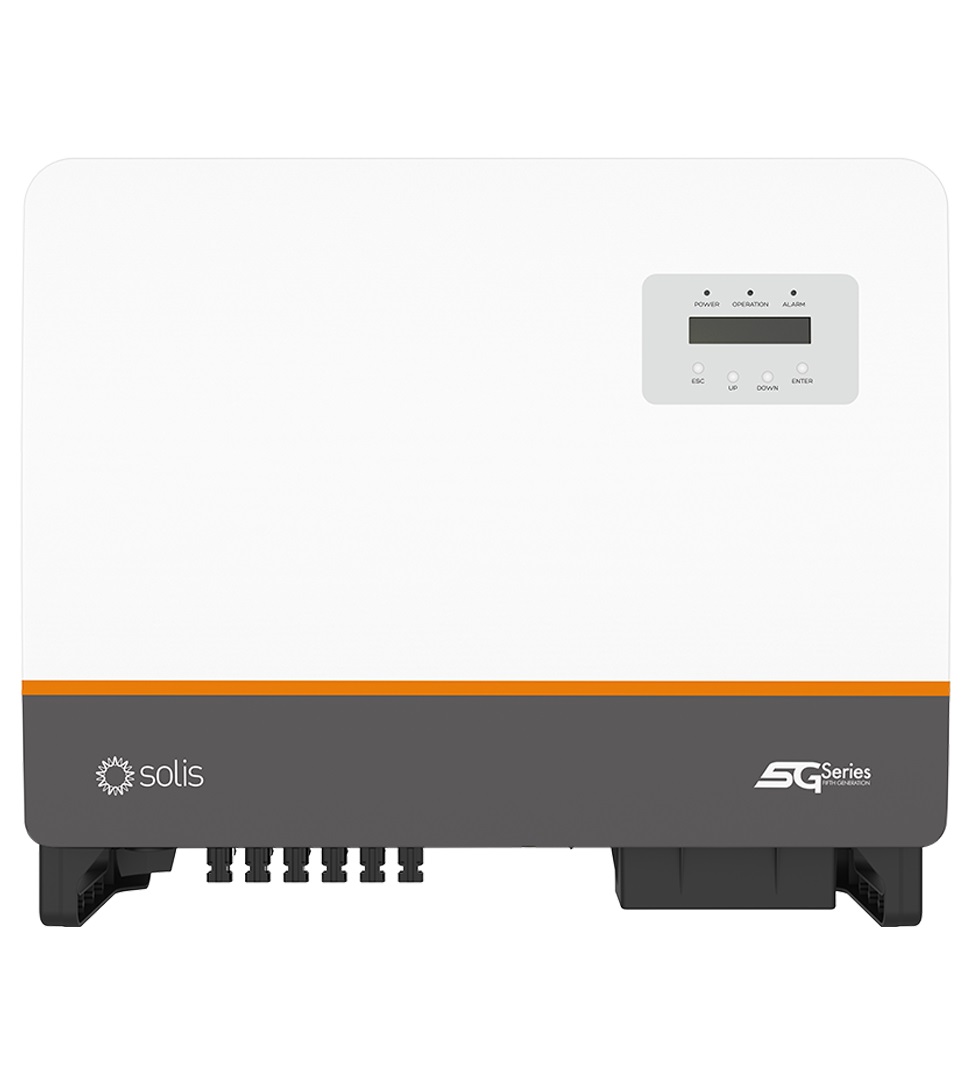

Solis S5-GC(25-50)K

Solis S5-GC(25-50)K
Solis S5-GC(25-50)K
Solis S5-GC(25-50)K
Solis S5-GC(25-50)K
Solis S5-GC(25-50)K

Solis S5-GC(25-50)K

400V: 25K/30K/33K/36K/40K/40K-HV/50K-HV



S5-GC(25-50)K three-phase series string inverter adopt 3/4 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Whose operation is so quiet, like a whisper, thus creating a more comfortable and friendly working and living environment.

Product Datasheet

Features



  • Max. efficiency 98.8%

  • IP66
  • > 150% DC/AC ratio
  • String current up to 16A
  • Supports RS485, WiFi, GPRS
  • Supports export power control
  • Intelligent redundant fan-cooling
  • Wide voltage range and low startup voltage
  • Supports aluminium wire access to reduce cost
  • AFCI protection, proactively reduces fire risk
  • Intelligent string monitoring, smart I-V curve scan
  • Globally recognised branded componentry for longer life
  • Supports high power modules for lower installation costs
  • 3/4 MPPT design, supports multiple orientation system design
  • Night time PID recovery function, increases overall system yield (optional)
  • Scan to register on SolisCloud, supports remote upgrade and control
  • Supports GPRS/WiFi communication with less wiring and reduced installation costs



Technical Specifications

S5-GC25K S5-GC30K S5-GC33K S5-GC36K S5-GC40K S5-GC40K-HV S5-GC50K-HV

Input DC

  • Recommended max. PV power:

    37.5 kW
  • Max. input voltage:
    1100 V
  • Rated voltage:
    600 V
  • Start-up voltage:
    180 V
  • MPPT voltage range:
    200-1000 V
  • Max. input current:
    32 A / 32 A /32 A
  • Max. short circuit current:
    40 A / 40 A / 40 A
  • MPPT number/Max. input strings number:
    3/6



Output AC

  • Rated output power:

    25 kW
  • Max. apparent output power:
    27.5 kVA
  • Max. output power:
    27.5 kW
  • Rated grid voltage:
    3/N/PE, 220 V / 380 V, 230 V / 400 V
  • Rated grid frequency:
    50 Hz / 60 Hz
  • Rated grid output current:
    38.0 A / 36.1 A
  • Max. output current:
    41.8 A
  • Power factor:
    >0.99 (0.8 leading - 0.8 lagging)
  • THDi:
    <3%



Efficiency

  • Max. efficiency:
    98.5%
  • EU efficiency:
    98.1%

Protection

  • DC reverse-polarity protection:
    Yes
  • Short circuit protection:
    Yes
  • Output over current protection:
    Yes
  • Surge protection:
    DC Type II / AC Type II
  • Grid monitoring:
    Yes
  • Anti-islanding protection:
    Yes
  • Temperature protection:
    Yes
  • Strings monitoring:
    Yes
  • I/V Curve scanning:
    Yes
  • Integrated PID recovery:
    Optional
  • Integrated AFCI (DC arc-fault circuit protection):
    Yes(Activation required)
  • Integrated DC switch:
    Optional

General Data

  • Dimensions (W*H*D):

    647*629*252 mm
  • Weight:
    37 kg
  • Topology:
    Transformerless
  • Self-consumption (night):
    <1 W
  • Operating ambient temperature range:
    -25 ~ +60°C
  • Relative humidity:
    0-100%
  • Ingress protection:
    IP66
  • Cooling concept:
    Intelligent redundant fan-cooling
  • Max. operation altitude:
    4000 m
  • Safety/EMC standard:
    IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
  • Grid connection standard:
    G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530



Features

  • DC connection:
    MC4 connector
  • AC connection:
    OT terminal
  • Display:
    LCD
  • Communication :
    RS485, Optional: Wi-Fi, GPRS
