SG Portable Storage Power 300W-2000W

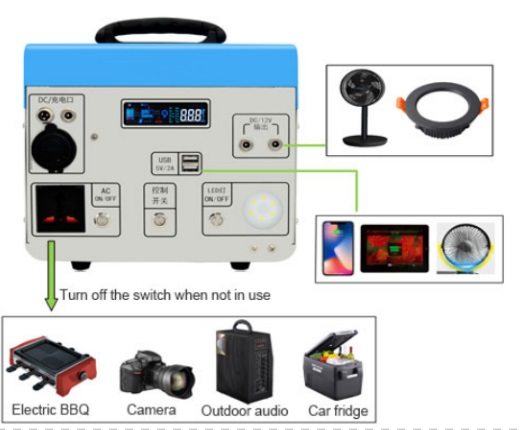

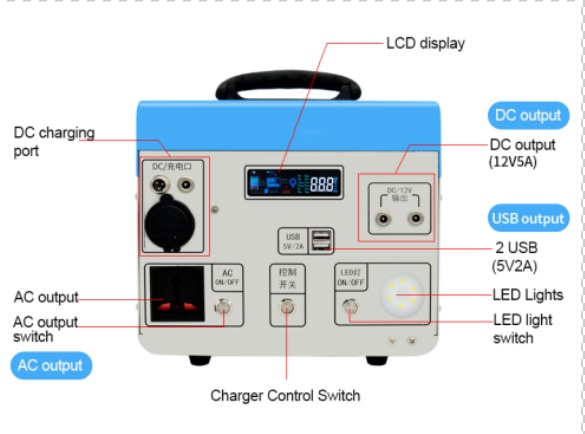

1. Support AC, DC, USB multiple output mode;
2. Built-in LED lighting, emergency high brightness at night;
3. With municipal electric, vehicle, solar energy three charging methods;
4. This product is small in volume, light in weight, high in efficiency, and stable in performance;
5. This power supply is built-in high-quality lithium iron phosphate battery, lasting endurance;
6. This power supply is built-in pure sine wave inverter, stable AC output;
Parameter table of lithium battery integrated machine |
|||||||||
Parameter name |
SG-BX parameter table (and adjustable range) |
||||||||
Battery type |
LiFePo4 |
||||||||
Battery capacity |
3.2V/208000mA/ 670wh |
3.2V/400000mA/1280wh |
3.2V/600000mA/1920wh |
||||||
Voltage |
12.8V |
12.8V |
12.8V |
||||||
Model |
SG-BX300/55-220 |
SG-BX500/55-220 |
SG-BX300/100-220 |
SG-BX500/100-220 |
SG-BX1000/100-220 |
SG-BX1000/150-220 |
SG-BX1500/150-220 |
SG-BX2000/150-220 |
|
Inverter para-meters |
Power rating |
300W |
500W |
300W |
500W |
1000W |
1000W |
1500W |
2000W |
Wave form |
Pure sine wave |
||||||||
Output voltage range |
110Vac ± 5% or 220VAC ± 5% (can be customized) |
||||||||
Output frequency |
50HZ/60HZ |
||||||||
Maximum inverter efficiency |
>92% |
||||||||
Controller para-meter |
Photovoltaic charging maximum current |
10A |
|||||||
Maximum voltage of the PV panels |
30V |
||||||||
Municipal electricity charging |
16V DC / 5A max |
||||||||
DC output |
DC-12V/5A、USB-5V/2A |
||||||||
Battery working scope |
11.2V~15.6V |
||||||||
Internal battery |
High-quality lithium iron phosphate batteries |
||||||||
Display mode |
LCD color screen |
||||||||
Work environment |
-10℃ ~+40℃ |
||||||||
Cooling mode |
Intelligent air cooling |
||||||||
Equipment protection level |
IP21 |
||||||||
Humidity |
10% ~ 90% No condensation |
||||||||
Net weight KG |
|
|
|
||||||
Product size |
225*175*205mm |
280*228*230mm |
340*243*323mm |
||||||
Weight KG |
|
|
