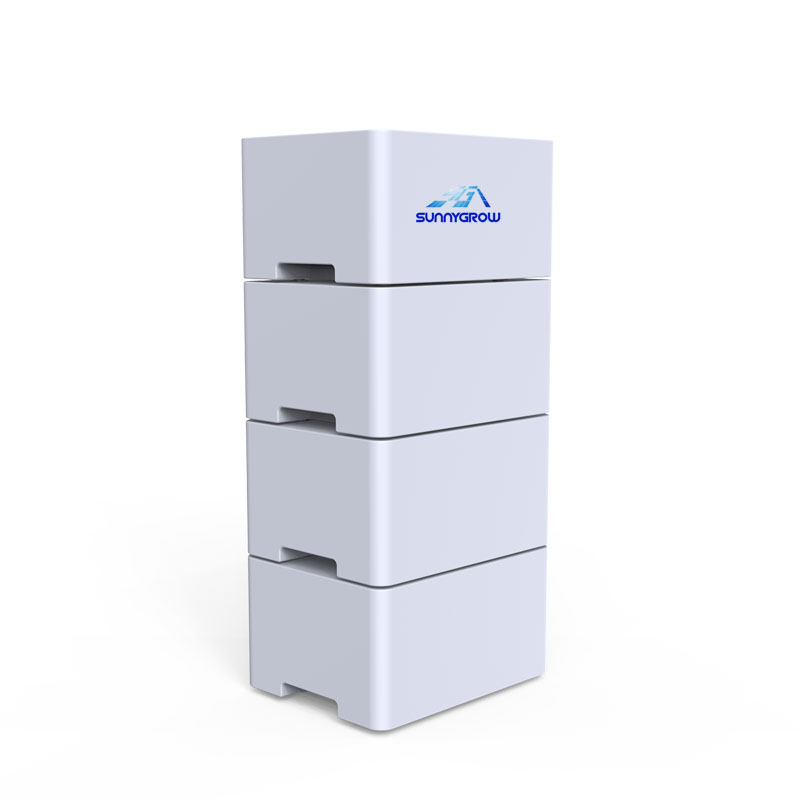

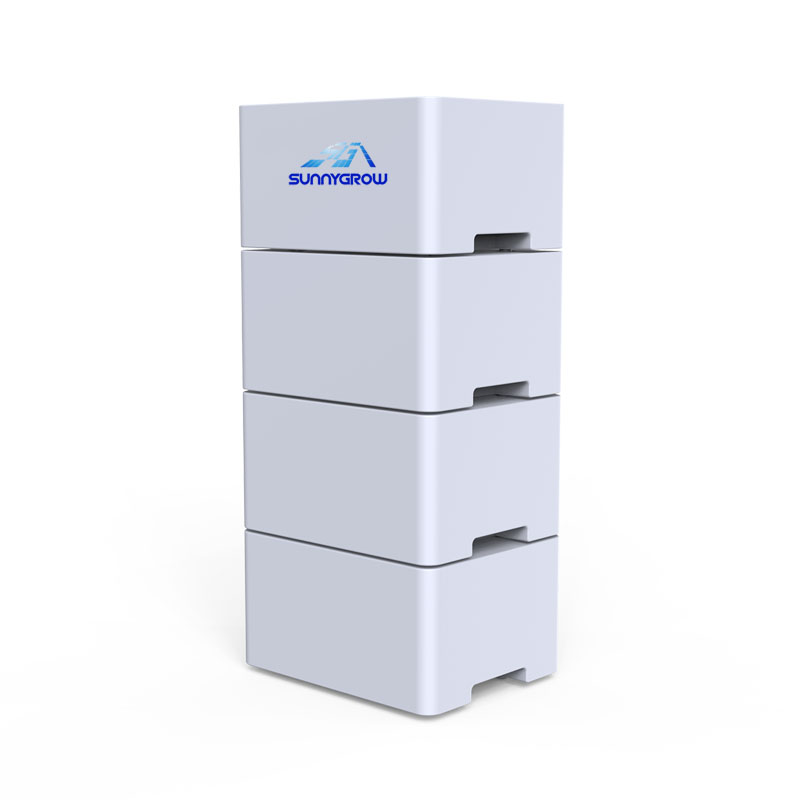

Sunnygrow Stackable Lithium Battery(HV)

5.12KWH - 76.8KWH

  • Production place :

    China
  • Brand :

    SUNNYGROW
  • Lead Time :

    30-40 days
Product Datasheet



The SG-ES HV2.5 is the latest version of high voltage battery storage system provided by Sunnix Energy. The newly designed system provides easy connector to save valuable time for installers. The stacking system provides flexible configurations from 102.4V to 409.6V voltage and 5.12 kWh to 20.48 kWh capacity.



Stackable Lithium Battery







Model

SG-ES HV5.0

SG-ES HV7.5

SG-ES HV10.0

SG-ES HV12.5

SG-ES HV15.0

SG-ES HV17.5

SG-ES HV20.0

Nominal Energy (KWh)

5.12

7.68

10.24

12.8

15.36

17.92

20.48

Usable Energy (KWh)

4.61

6.91

9.22

11.52

13.82

16.13

18.43

Nominal Voltage(V)

102.4

153.6

204.8

256

307.2

358.4

409.6

Recommend Charge/Discharge Current (A)

30/30

Max Charge/Discharge Current (A)

50/50

Round-Trip Efficiency

>97.5%

Communication

CAN, RJ45

Charge Temperature (°C)

0-50

Discharge Temperature(°C)

-20-60

Weight (Kg)

70

96.8

123.6

150.4

177.2

204

230.8

Dimension (W*H*D mm)

570*500*330

570*650*330

570*800*330

570*950*330

570*1100*330

570*1250*330

570*1400*330

Module Number

2

3

4

5

6

7

8

Enclosure Protection Rating

IP54

Recommend DOD

80%

Cycles Life

10.000

Design Life

20+ Years (25°C@77°F)

Humidity

5%-95%

Altitude(m)

<2,000

Installation

Stackable

Warranty

10 Years

Safety Standard

UL1973/IEC62619/UN38.3
