Flood light
The multiple-usage solar light for all
PRODUCT PARAMETERS
MAIN COMPONENTS Garden Light Courtyard Light Square Light
Road Light
Monocrystalline silicon solar panel
High Luminous LED
Intelligent controller
High Quality Lithium Iron Phosphate battery

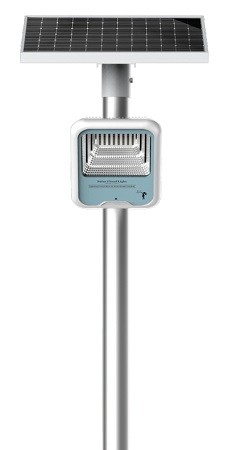

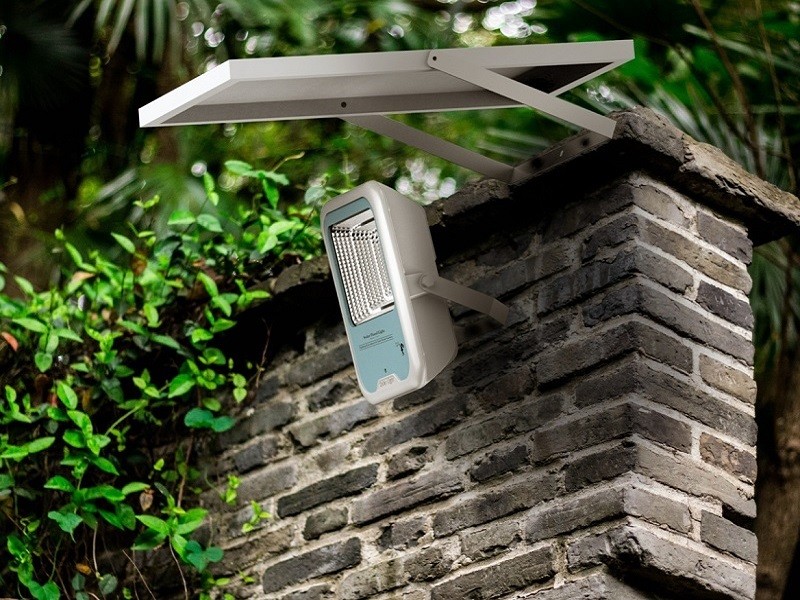

Solar Floodlight
Separated type design
Separate the solar panel and lights for more installation situations and
maximum converslon ofthe sunshine.
Brand accessories
Adopt brand lifepo4 battery cell with more than 20o0life cyeles.
Intelligentsystem
Subverting the previous mechanical design. more slcck lines.more
outstanding and upmarket shape.
7 working modes
Sensor / Semi-induction/100%lighting mode/50%lightingmode/3-Hourslighting model
5-Hours lighting mode|8-Hours lighting mode
Efficientsolar panel
Adopt high effciency monocrystalline silicon solar panel for better
performance especially in the cloudy and rainy days.
Human radarinduction
The interference ofhigh harmonics and other cluttercan be suppressed effectively
PARAMETERS
|
Product Model |

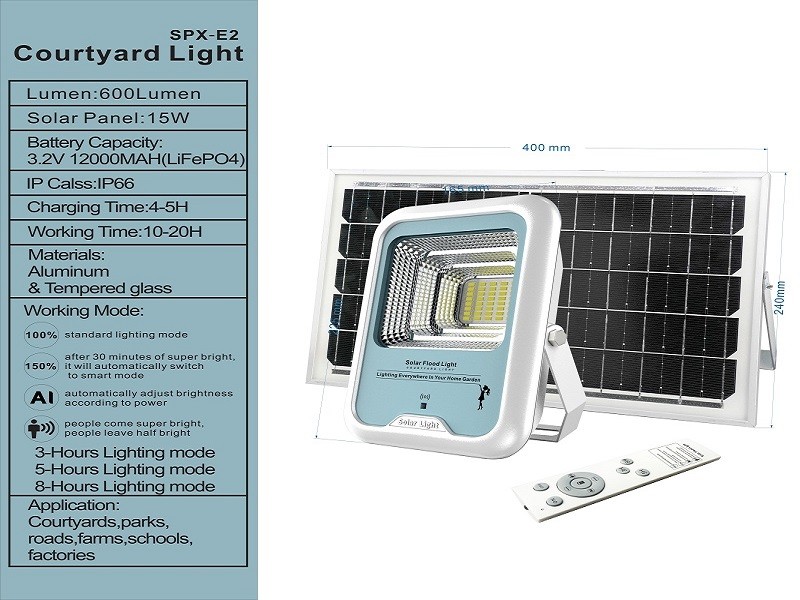

Courtyard Light SPX-E2 |
Road Light SPX-E3 |
Road Light SPX-E4 |
Square Light SPX-E5 |
|
Lumen |
600Lumen |
1000Lumen |
1200Lumen |
1800Lumen |
|
Solar Panel |
15W |
25W |
30W |
40W |
|
Battery Capacity |
3.2V12000mAH |
3.2V18000mAH |
3.2V24000mAH |
3.2V30000mAH |
|
Lamp Size |
244.8*164.8*59.8mm |
274.8*209.8*79.8mm |
274*8*2098*79.8mm |
307.9*239*807mm |
|
Panel Size |
240*400*17mm |
360*400*25mm |
430*400*25mm |
(280*400*17)mm*2 |
|
Package |
8sets/ctn |
5sets/ctn |
6sets/ctn |
4sets/ctn |
|
Carton Size |
515*425*265mm |
400*380*425mm |
463*440*427mm |
458*330*428mm |
|
Ip Class |
Ip66 |
|||
|
Charging Time |
4-5H |
|||
|
Working Time |
10-20H |
|||
|
Color Temperature |
(CW)-(6000-6500K) |
|||
Project

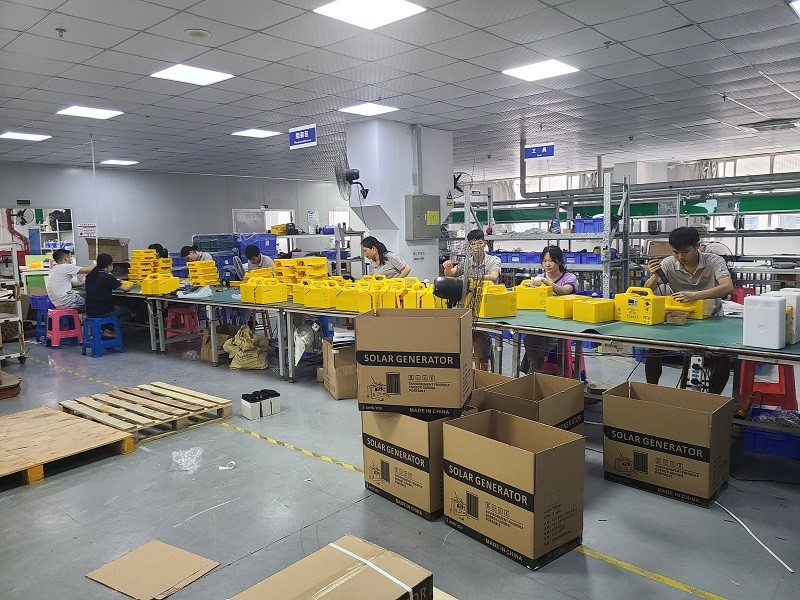

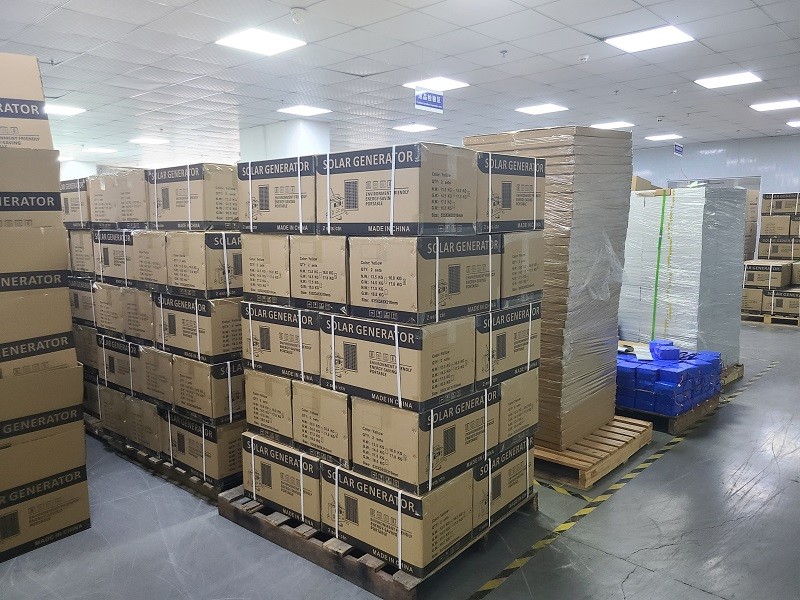

Production Line & Packing
