Solar Water Pumping System For Agriculture Irrigation
System Application:
ZH Solar pump system is mainly used in the fields of daily life water, agricultural and forestry irrigation, desert management, livestock water, village and town water supply, sewage treatment engineering and fountain landscape.
Professional solar pump system provider
Solar Water Pumping System
INTRODUCTION

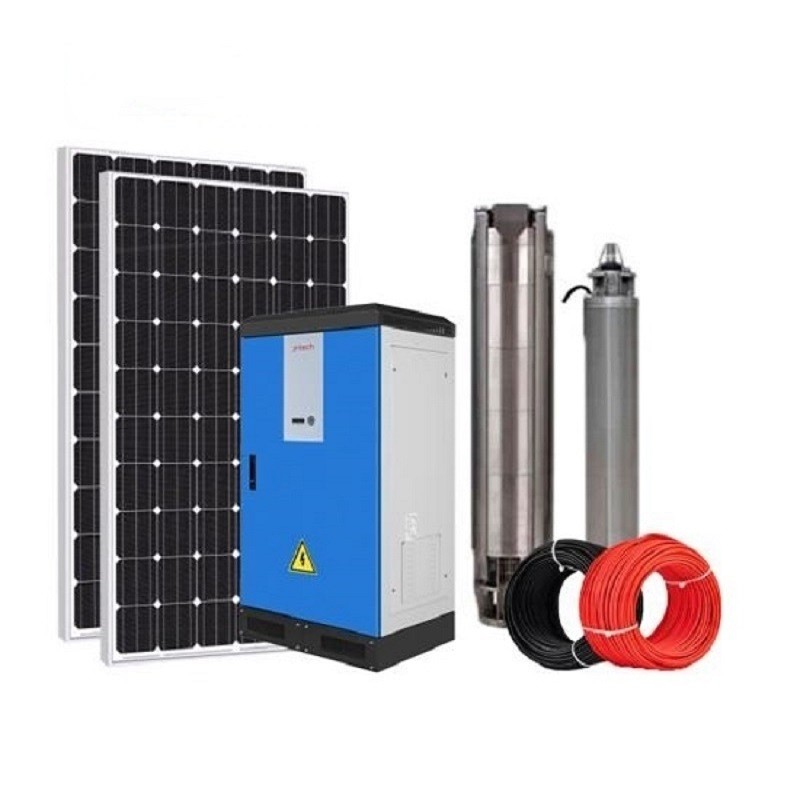

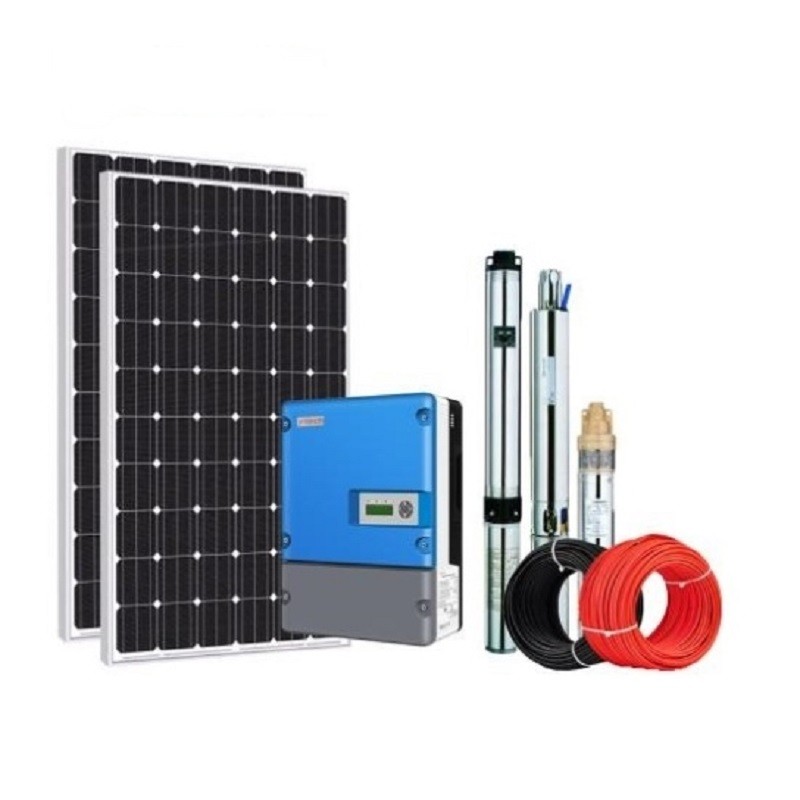

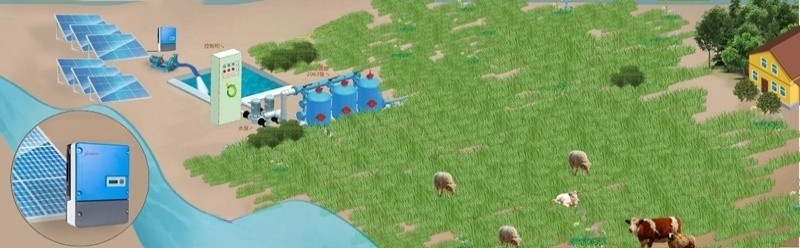

The system consists of solar cell array, solar water pump inverter, water pump, water storage device and so on. It uses solar energy as the power source and directly draws water from deep wells, rivers, rivers, lakes and other water sources through pumps. When the sunlight intensity becomes weak, the solar water pump system can also realize the switching function of power supply. Guaranteed to maximize utilization。
System Features:
High MPPT efficiency and wide solar input voltage range;
2. Unattended, one key to automatically start;
3. More than 20 system protection functions, starting self-test, soft start and soft stop, built-in lightning protection, significantly prolong the life of the system, and low operation and maintenance costs;
4. Built-in data recording module, save system failure and historical operation information, easy maintenance and low cost;
5. IP65 protection grade, no protective shell; rated working temperature up to 60 degrees Celsius, suitable for high temperature and high humidity environment;

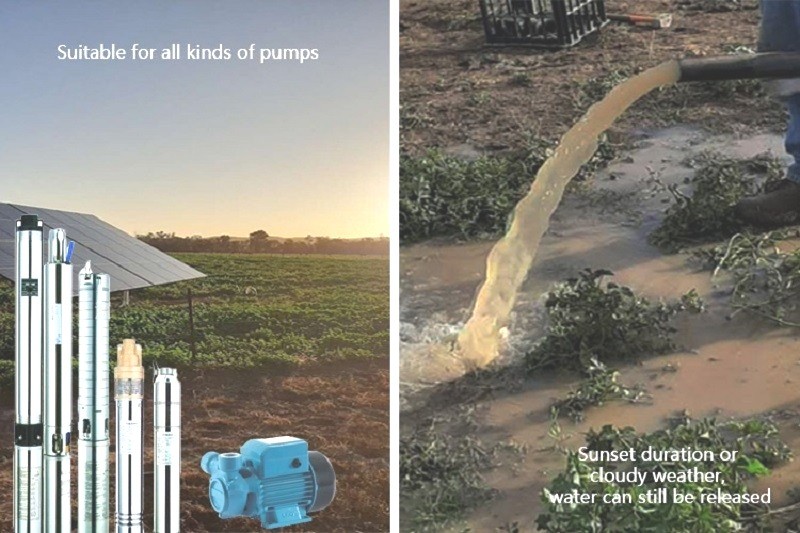

6. Adapt to a variety of solar power generation changes in dark weather;
7. Solar energy and utilities are mixed online, working 24 hours a day;
8. Remotely control RS485/GPRS through APP, which is convenient for monitoring operation data, and remote control system on or off.
Technical Data
|
ITEM |
Voltage |
Power |
Max.Flow |
Max.Head |
Outlet
|
Cable |
Solar panel Power |
|
4JDPn4.5-85-110-750 |
110V |
750W |
4.5m³/h |
85m |
1.25" |
2m |
≥1.3*PUMP POWER |
|
4JDPn6-65-72-550 |
72V |
550W |
6m³/h |
65m |
1.25" |
2m |
≥1.3*PUMP POWER |
|
4JDPn7-100-72-1100 |
72V |
1100W |
7 m³/h |
100m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn7.5-65-110-750 |
110V |
750W |
7.5m³/h |
65m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDP.7.5-110-110-1500 |
110V |
1500W |
7.5 m³/h |
110m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPh11-45-72-550 |
72V |
550W |
11 m³/h |
45m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn11.5-100-110-1500 |
110V |
1500W |
11.5 m³/h |
100m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn12-75-72-1100 |
72V |
1100W |
12 m³/h |
75m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn14.5-45-110-750 |
110V |
750W |
14.5 m³/h |
45m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDP15-55-72-1100 |
72V |
1100W |
15 m³/h |
55m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn15.5-65-110-1500 |
110V |
1500W |
15.5 m³/h |
65m |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn20-38-110-1500 |
110V |
1500W |
20 m³/h |
38m |
2" |
2m |
≥1.3*PUMP POWER |
Hybrid Series
|
ITEM |
(AC)Voltage |
(DC)Voltage |
Power |
Max. Flow(m3/h) |
Rated Flow (m3/h) |
Max. Head |
Outlet
|
Cable |
Solar panel Power |
|
4JDPn4.5-85-110-750-A/D |
85V-280V |
80V-420V |
750W |
4.5 |
2.5 |
85 |
1.25" |
2m |
≥1.3*PUMP POWER |
|
4JDPn7.5-65-110-750-A/D |
85V-280V |
80V-420V |
750W |
7.5 |
4.1 |
65 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn7.5-100-150-1100-A/D |
85V-280V |
80V-420V |
1100W |
7.5 |
4.1 |
100 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDP7.5-110-200-1500-A/D |
85V-280V |
80V-420V |
1500W |
7.5 |
4.1 |
110 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDP12-75-150-1100-A/D |
85V-280V |
80V-420V |
1100W |
12 |
6.6 |
75 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn11.5-100-200-1500-A/D |
85V-280V |
80V-420V |
1500W |
11.5 |
6.3 |
100 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDP14.5-45-110-750-A/D |
85V-280V |
80V-420V |
750W |
14.5 |
8.0 |
45 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn15-55-150-1100-A/D |
85V-280V |
80V-420V |
1100W |
15 |
8.3 |
55 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPh15.5-70-200-1500-A/D |
85V-280V |
80V-420V |
1500W |
15.5 |
8.5 |
70 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPh17-95-300-2200-A/D |
85V-280V |
80V-420V |
2200W |
17 |
9.4 |
95 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn20-45-200-1500-A/D |
85V-280V |
80V-420V |
1500W |
20 |
11 |
45 |
2" |
2m |
≥1.3*PUMP POWER |
|
4JDPn22-70-300-2200-A/D |
85V-280V |
80V-420V |
2200W |
22 |
12.1 |
70 |
2" |
2m |
≥1.3*PUMP POWER |
