Solis-(215-255)K-EHV-5G

800V: 215K-PLUS /250K /250K-PLUS /255K / 255K-PLUS

215-255kW three-phase series string inverter have Maximum 28 strings input, support "Y" type connection in DC side. Maximum string input current 15 A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent strings monitoring reduces fault location time.

Product Datasheet

Product Details

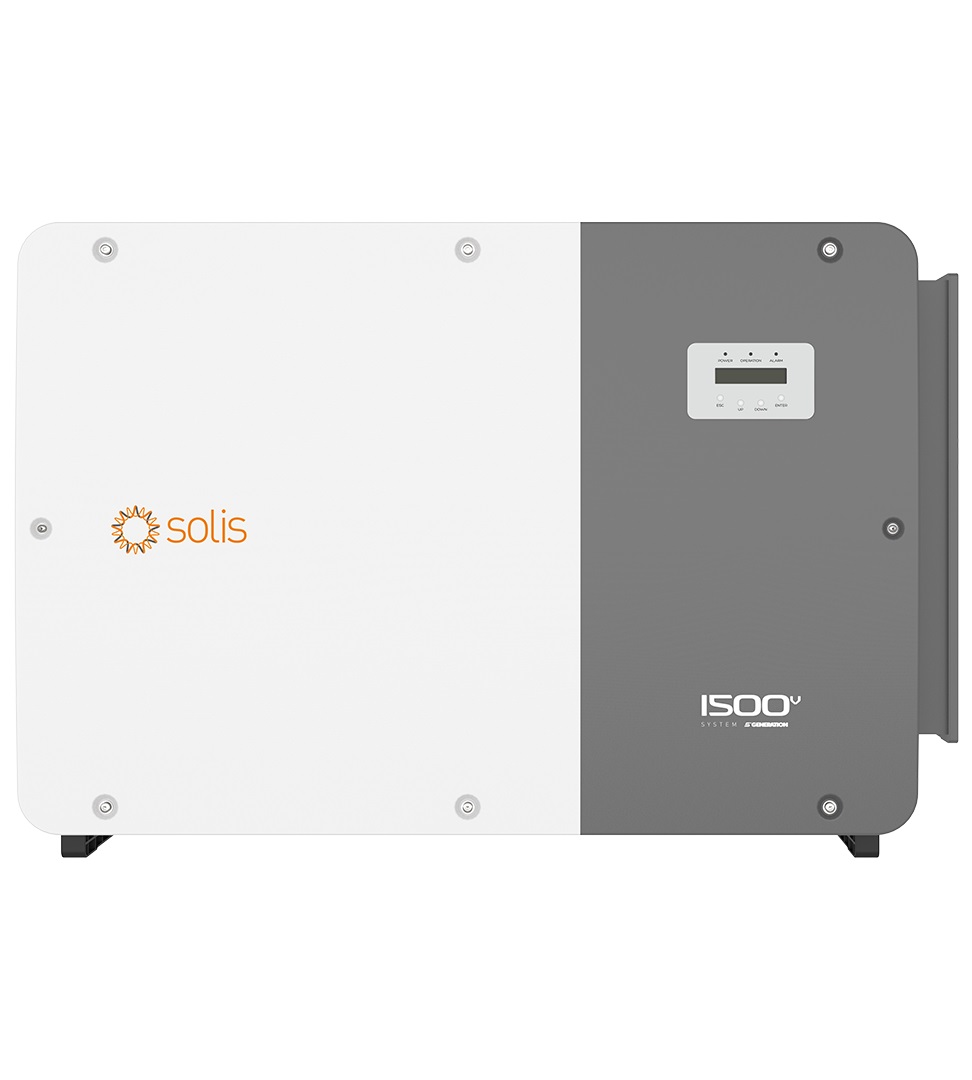

215-255kW Three Phase Inverter

Leading Features

9/12/14 MPPTs, max. efficiency 99%
> 150% DC/AC ratio
High power tracking density 56MPPT/MW
Compatible with 500W+ bifacial modules
IP66
Night SVG function
Built-in PID recovery for better module performance
Fuse free design, safe and maintenance free
Globally recognised branded componentry for longer life
Intelligent string monitoring, smart I-V curve scan
Remote firmware upgrade with simple operation
Power line communication (PLC) (optional)
DC side supports "Y" connector
Supports aluminium wire access to reduce cost

Technical Specifications

Solis-215K-EHV-5G-PLUS Solis-250K-EHV-5G Solis-250K-EHV-5G-PLUS Solis-255K-EHV-5G Solis-255K-EHV-5G-PLUS

Input DC

Max. input voltage:

1500 V
Rated voltage:

1080 V
Start-up voltage:

500 V
MPPT voltage range:

480-1500 V
Max. input current:

9*30 A
Max. short Circuit current:

9*50 A
MPPT number:

9
Max. input strings number:

18

Output AC

Output power:

215 kVA @ 30°C / 205 kVA @ 40°C / 195 kVA @ 50°C
Rated grid voltage:

3/PE, 800 V
Grid voltage range:

640-920 V
Rated grid frequency:

50 Hz / 60 Hz
Max. output current:

155.2 A
Power factor:

>0.99(0.8leading-0.8lagging)
THDi:

＜3%

Efficiency

Max. efficiency:

99.0%
EU efficiency:

98.8%

Protection

DC reverse-polarity protection:

Yes
Short circuit protection:

Yes
Output over current protection:

Yes
Surge protection:

DC Type Ⅱ/ AC TypeⅡ
Grid monitoring:

Yes
Anti-islanding protection:

Yes
Temperature protection:

Yes
Strings monitoring:

Yes
I/V Curve scanning:

Yes
Night time SVG function:

Yes
Integrated PID recovery:

Yes
Integrated DC switch:

Yes

General Data

Dimensions (W*H*D):

1125*770*384 mm
Weight:

109 kg
Topology:

Transformerless
Self-consumption (night):

<2 W
Operating ambient temperature range:

-30~+60℃
Relative humidity:

0-100%
Ingress protection:

IP66
Cooling concept:

Intelligent redundant fan-cooling
Max. operation altitude:

4000 m
Safety/EMC standard:

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Grid connection standard:

EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019

Features

DC connection:

MC4 connector
AC connection:

OT Terminal (max.300 mm²)
Display:

LCD
Communication:

RS485, Optional: PLC
