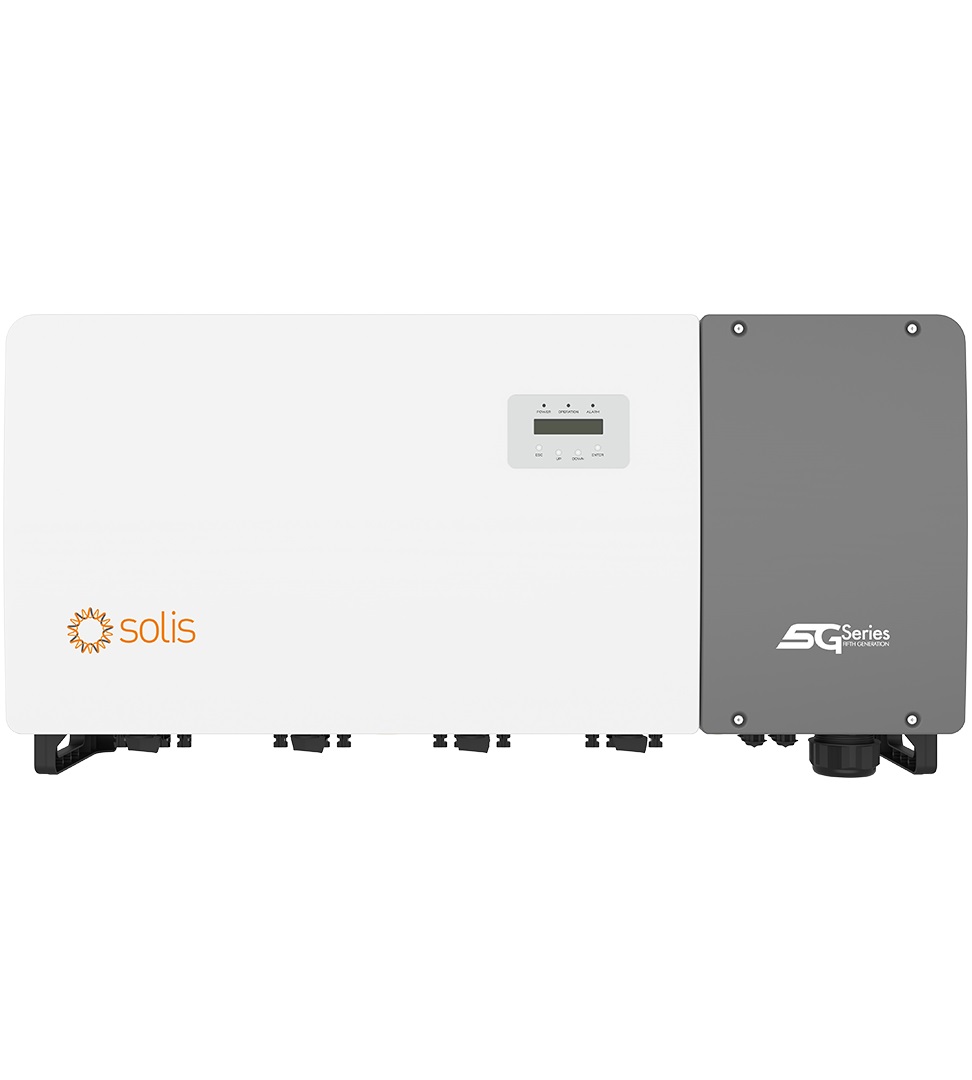

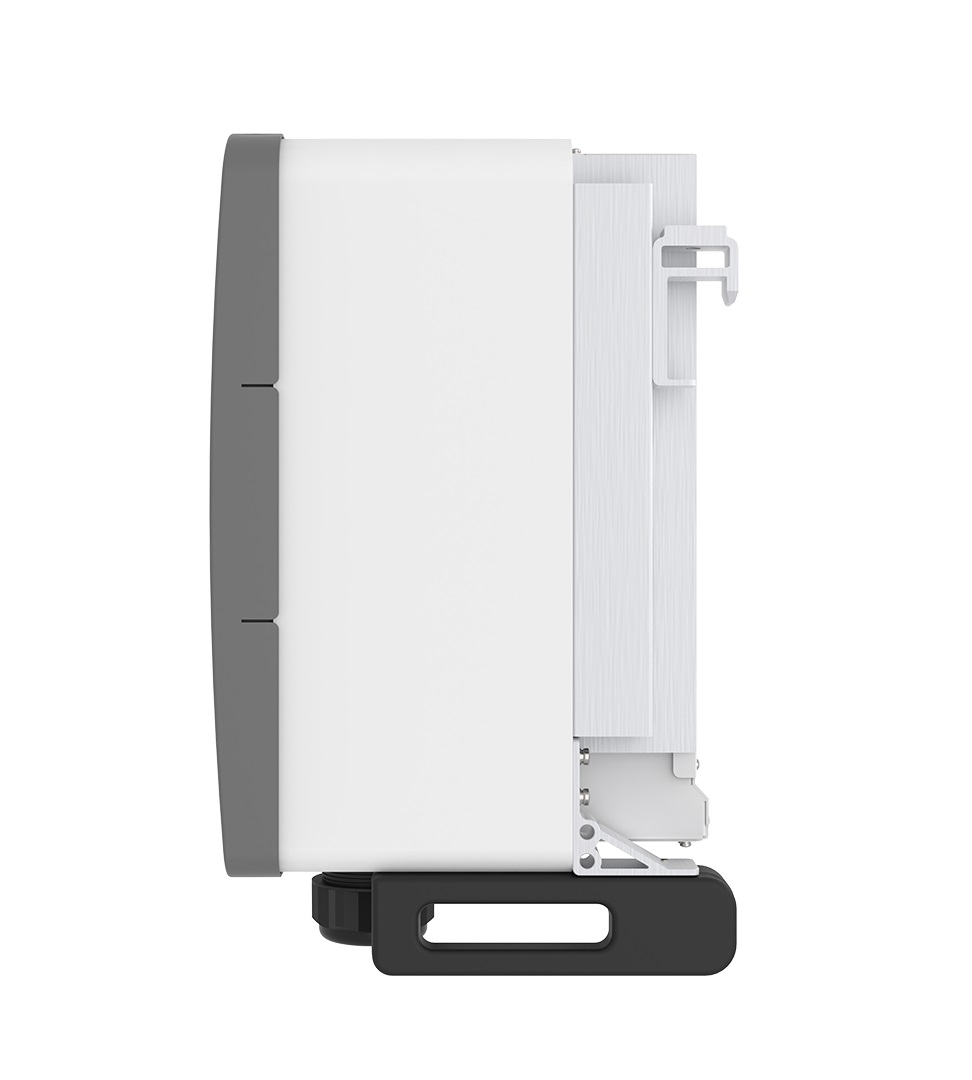

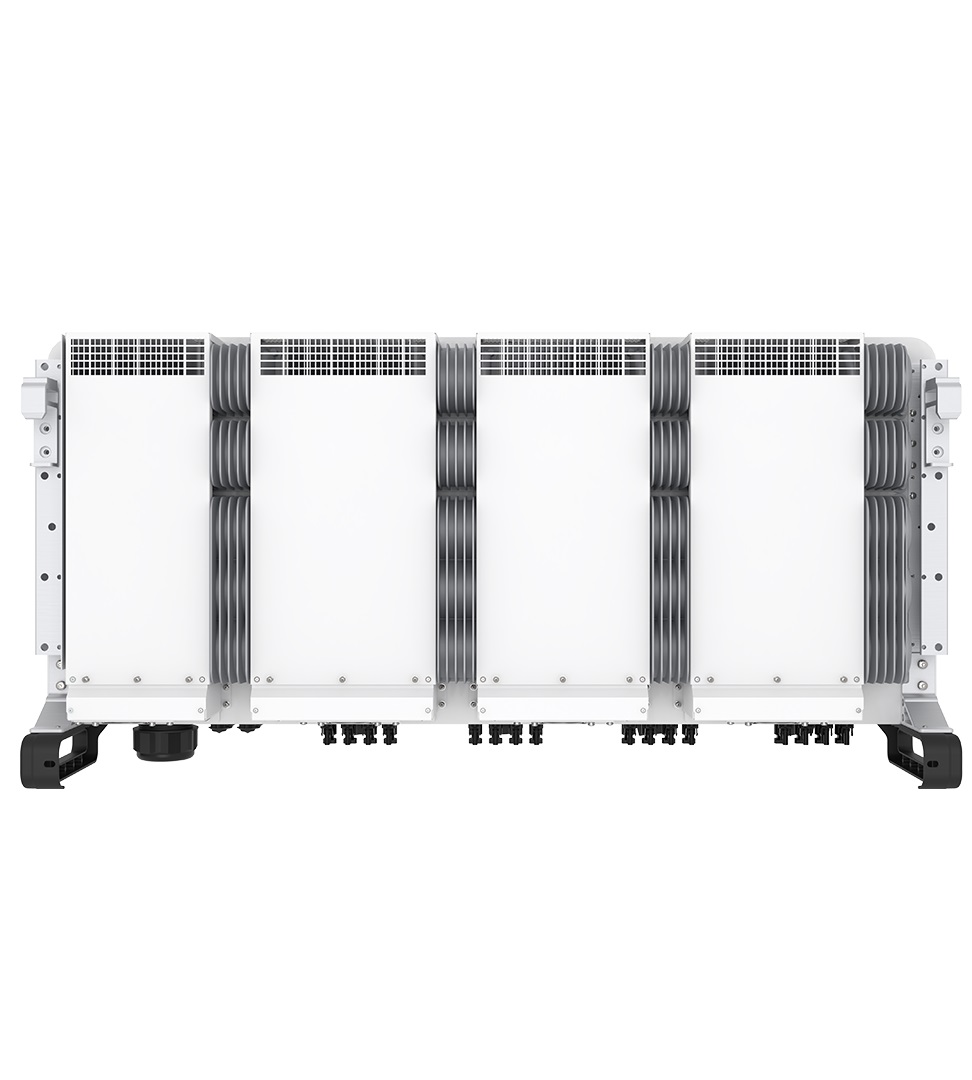

Solis-(80-110)K-5G-PRO

Solis-(80-110)K-5G-PRO 3-phase series inverter is a new generation of Solis 5G models, designed to provide high quality solutions for C&I PV projects. It maximum PV string input current is up to 18A, which can be used for a variety of efficient PV modules, supporting more than 150% DC oversize, High efficiency, Stable and Reliable; Compatible with RS485 / PLC/Wi-Fi/GPRS communication modes, AC/DC interface optimization design, strong cable compatibility, convenient installation, cost saving. Combined with the abundant online O&M tools provided by Solis cloud platform, which can effectively reduce O&M costs and simplify it, improve system efficiency

Product Datasheet

Product Details

80-110kW Three Phase Inverter

Leading Features

IP66
> 150% DC/AC ratio
Night SVG function
DC side supports "Y" connector
6/8 MPPTs, max. efficiency 98.5%
Compatible with bifacial modules
Power line communication (PLC) (optional)
Remote firmware upgrade with simple operation
AFCI protection, proactively reduces fire risk
Supports aluminium wire access to reduce cost
Intelligent string monitoring, smart I-V curve scan
Globally recognised branded componentry for longer life

Technical Specifications

Solis-80K-5G-PRO Solis-100K-5G-PRO Solis-110K-5G-PRO

Input DC

Max. input voltage:

1100 V
Rated voltage:

600 V
Start-up voltage:

180 V
MPPT voltage range:

160-1000 V
Max. input current:

36 A / 32 A / 36 A / 32 A /36 A / 32A
Max. short circuit current:

6*50 A
MPPT number:

6
Max. input strings number:

12

Output AC

Rated output power:

80 kW
Max. apparent output power:

88 kVA
Max. output power:

88 kW
Rated grid voltage:

3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency:

50 Hz / 60 Hz
Rated grid output current:

121.6 A / 115.5 A
Max. output current:

133.7 A
Power factor:

>0.99 (0.8 leading - 0.8 lagging)
THDi:

<3%

Efficiency

Max. efficiency:

98.5%
EU efficiency:

98%

Protection

DC reverse-polarity protection:

Yes
Short circuit protection:

Yes
Output over current protection:

Yes
Surge protection:

DC Type II / AC Type II
Grid monitoring:

Yes
Anti-islanding protection:

Yes
Temperature protection:

Yes
Strings monitoring:

Yes
I/V Curve scanning:

Yes
Integrated DC switch: Yes
Integrated AFCI (DC arc-fault circuit protection):

Yes (Activation required)

General Data

Dimensions (W*H*D):

1183*585*363 mm
Weight:

77 kg
Topology:

Transformerless
Self-consumption (night):

<2 W
Operating ambient temperature range:

-30 ~ +60°C
Relative humidity:

0-100%
Ingress protection:

IP66
Cooling concept:

Intelligent redundant fan-cooling
Max. operation altitude:

4000 m
Safety/EMC standard:

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Grid connection standard:

G99, IEC61727, EN50549-1/2, VDE4110

Features

DC connection:

MC4 connector
AC connection:

OT terminal (max. 240 mm²)
Display:

LCD
Communication:

RS485, Optional: Wi-Fi, GPRS, PLC
