Ultra Light Solar Panel (CSUL)

Ultra Light Solar Panel (CSUL)
Ultra Light Solar Panel (CSUL)
Ultra Light Solar Panel (CSUL)
Ultra Light Solar Panel (CSUL)
Ultra Light Solar Panel (CSUL)

Ultra Light Solar Panel (CSUL)

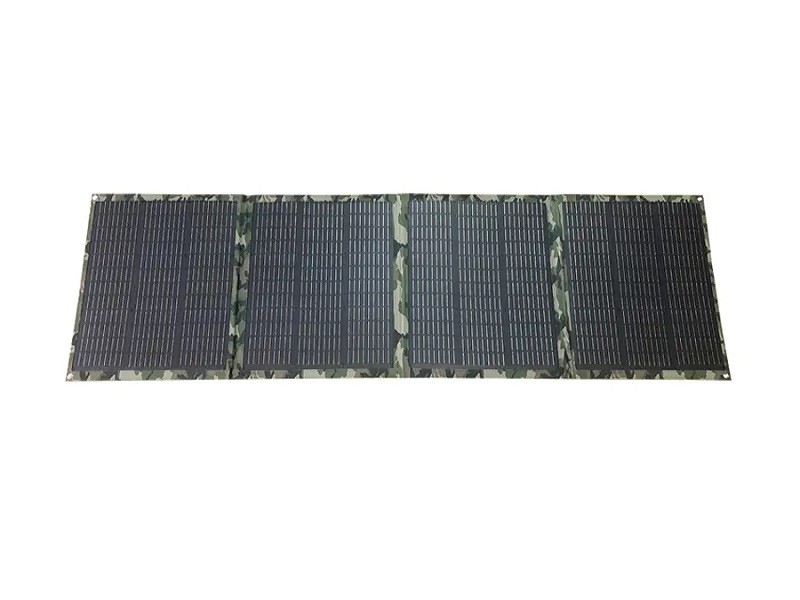

Our 50-360 watt Foldable Solar Panel Mat is designed ultralight, portable while you go camping. It is produced with A grade monocrystalline silicon cell, more than 23.5% photoelectric conversion rate can be ensured. It is suitable for mobile phone, laptop, iPad, power banks, etc.

Product Datasheet

Ultra Light Solar Panel (CSUL)

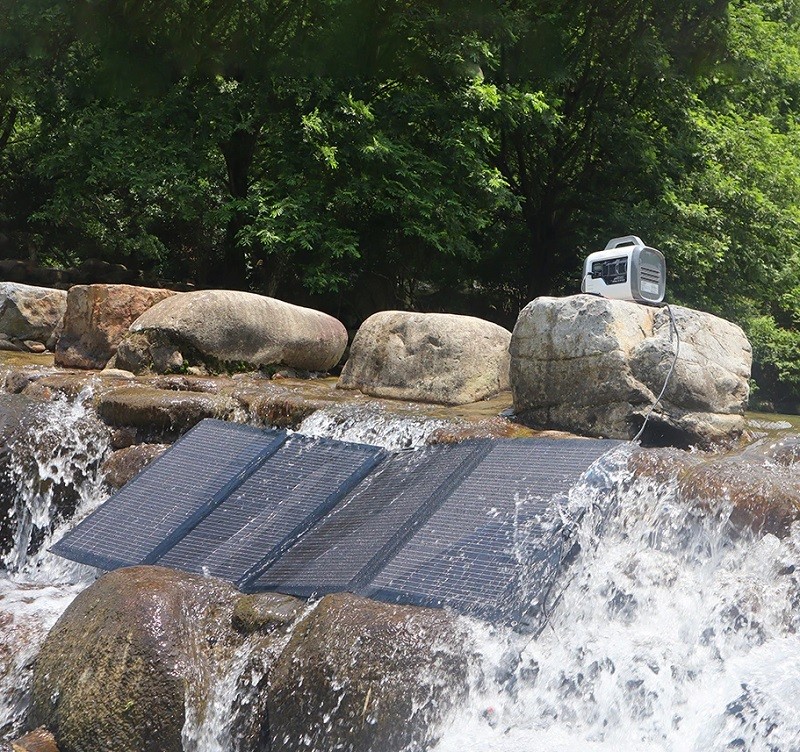

Portable Folding Solar Panel Mat is is here to help you take advantage of the sun’s unlimited power and help you power up your portable power station ,solar generators and all kinds batteries(Lead acid, Lithium). You can enjoy unlimited, eco-friendly power no matter where you are.

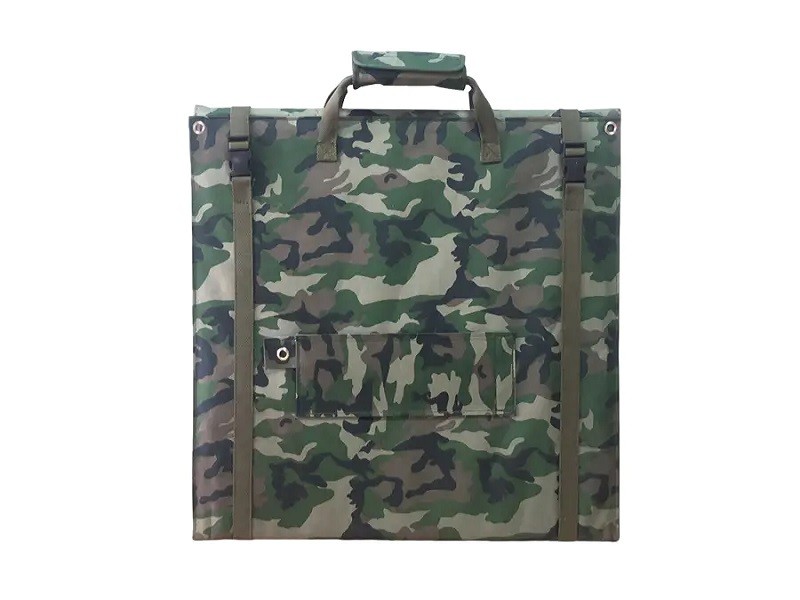

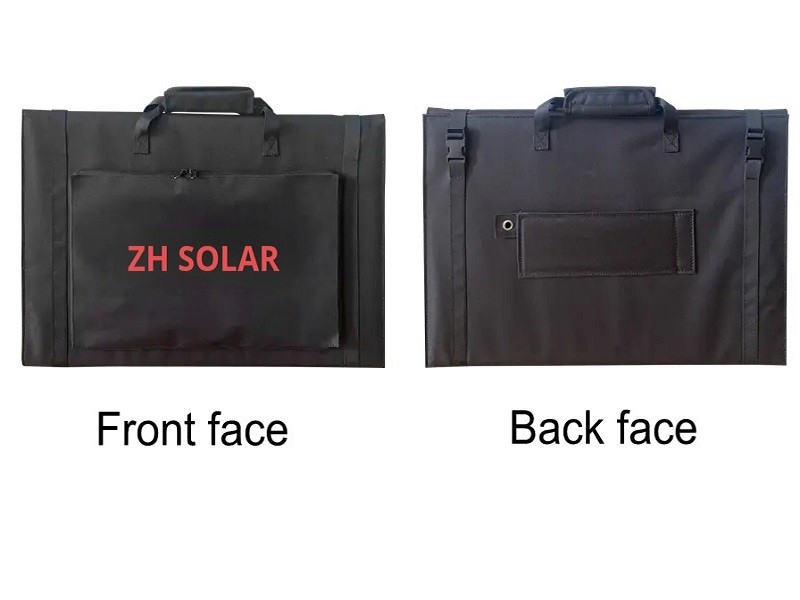

Our  Portable Folding Solar Panel Mat is using A grade Mono solar cells, efficiency can be more than 23.5%, PET or ETFE lamination, sewed with 600D fabric, built-in handle and accessories pocket allow you conveniently to carry it for camping or travelling.









ZHSOLAR ULTRA LIGHT SOLAR PANEL (CSUL)

Folding Module

CSUL-F2-50W

CSULF2-80W

CSUL-F2-100W

CSUL-F3-120W

CSUL-F3-150W

CSUL-F4-160W

CSUL-F4-200W

CSUL-F4-240W

CSUL-F5-250W

CSUL-F6-360W

Encapsulation

ETFE /EVA 1 Cell /EVA/ Fiberglass

Maximum Power Pmax

50W

80W

100W

120W

150W

160W

200W

240W

250W

360W

Maximum Power Voltage Vmp)

18V

18V

18V

18V

18V

18V

18V

18V

18V

18V

Maximum Power Current [Imp]

2.78A

4.44A

5.56A

6.67A

8.33A

8.89A

1.11A

13.33A

13.89A

20.0A

Open Circuit VoltageVoc

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

21.24V

Short Circuit currentIsc

3.06A

4.89A

6.11A

7.33A

9.17A

9.78A

12.22A

14.67A

15.28A

22.0A

Cell Efficiency

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

23.5%

Dimensionmm

846x580x30

1040x550x30

1040x710x30

1556x550x30

1600x710x30

2110x550x30

2110x710x30

2120x710x30

2670x710x30

3200x710x30

Dimension When Foldedmm)

430x580x40

520x550x40

520x710x40

525x550x50

535x710x50

550x550x60

550x710x60

545x710x80

545x710x60

550x710x65

Weight

2.7KG

3.4KG

3.85KG

4.7KG

7.2KG

7.7KG

10.2KG

10.9KG

13KG

15KG

Tolerance

3%

Max System Open Circuit Voltage

1000V

Controller

PMW/MPP

Operate Temperature Range

-40~+85



Relative Humidity

0~100%

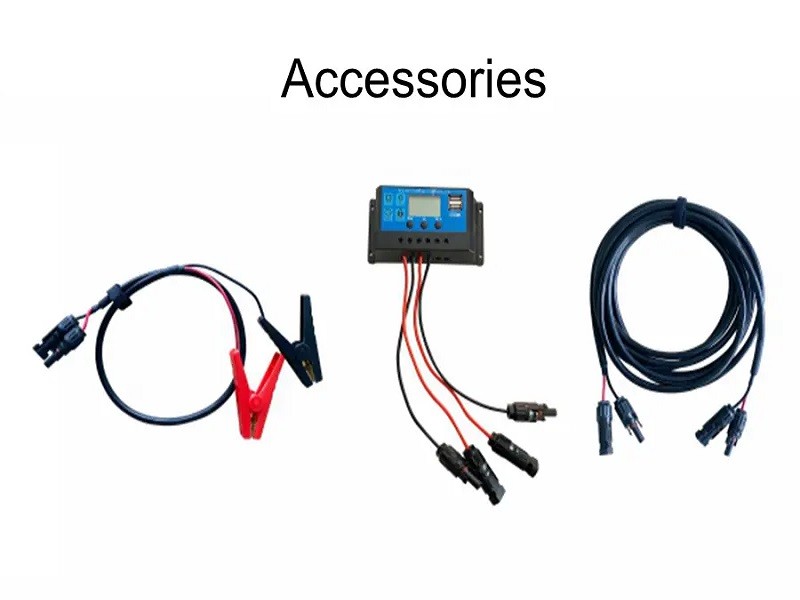

Accessories

1.PMW controller x1

2. 5 meter cable with Anderson or MC4 connector x1

3.30cm cable of alligator clip with Anderson connector x1

4. User Manual x1

5.OEM/ODM
