A lithium-ion battery or Li-ion battery is a type of rechargeable battery.

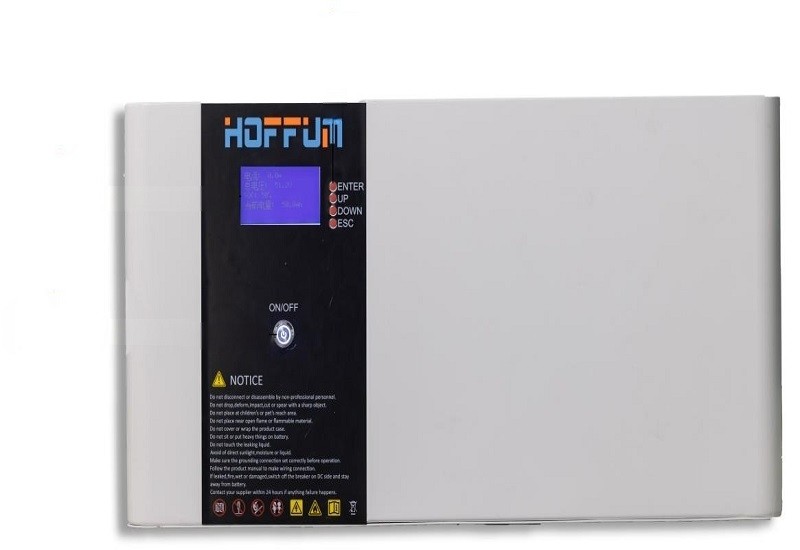

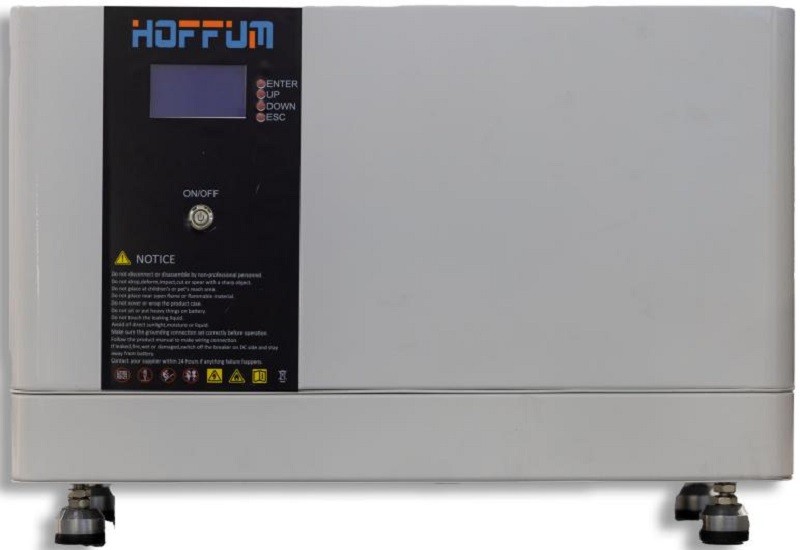

5Kwh Solar Lithium Battery(LV)
System accessories
Output line (positive pole)
Output line (negative pole)
Telecommunication lines
Technical Specification
|
No. |
Item |
Name |
Remark |
Specifications |
|
|
1 |
Display System
|
Type |
LCD Screen |
|
|
|
2 |
Size |
72*40mm |
|
||
|
3 |
Background light |
Blue light |
|
||
|
4 |
Barrery |
Type |
Lithium iron phosphate |
|
|
|
5 |
Rated Capacity |
5KWH |
|
||
|
6 |
Design life |
5 Years |
|
||
|
7 |
Electrical characteristics |
Switch function |
ON/OFF switch |
|
|
|
8 |
Discharge characteristic |
Continuous Current(A) |
100 |
||
|
9 |
Discharge voltage （V） |
40.0 |
|||
|
10 |
Charge characteristic |
Charge Voltage （V） |
58.4 |
||
|
11 |
Charge Current （A） |
≦100 |
|||
|
12 |
Charging limiting （A） |
10.0 |
|||
|
13 |
Interface form |
Single connector |
IP65 |
||
|
14 |
Communication methods |
RS485/CAN/UART |
|
||
|
15 |
Precharge function |
Yes |
|
||
|
16 |
Parallel address |
Yes |
|
||
|
17 |
Protective properties |
Over-charge Protection |
Yes |
|
|
|
18 |
Over-discharge Protection |
Yes |
|
||
|
19 |
Over-current Protection |
Yes |
|
||
|
Overcurrent lock times |
10 times |
||||
|
20 |
Temperature protection |
Yes |
|
||
|
21 |
Short Circuit Protection |
Yes |
|
||
|
22 |
Environment |
Working Temperature(℃) |
-20℃~+50℃ |
|
|
|
23 |
Charge Temperature(℃) |
0℃~+45℃ |
|
||
|
24 |
Humidity(%) |
10~95% |
|
||
|
25 |
Cooling |
Natural cooling |
|
||
|
26 |
Dimension |
（L/W/H(mm) |
Individual dimensions 600*300*293 27 |
|
|
|
27 |
Weight |
Net Weight (Kg) |
53 |
|
|
