Foldable Solar Panel Solar Blanket(CSSB)

Foldable Solar Panel Solar Blanket(CSSB)
Foldable Solar Panel Solar Blanket(CSSB)
Foldable Solar Panel Solar Blanket(CSSB)
Foldable Solar Panel Solar Blanket(CSSB)

Foldable Solar Panel Solar Blanket(CSSB)

Foldable Solar Panel Solar Blanket is widely applied to RV, Tent etc, good assistant of your travelling and adventure.

Product Datasheet

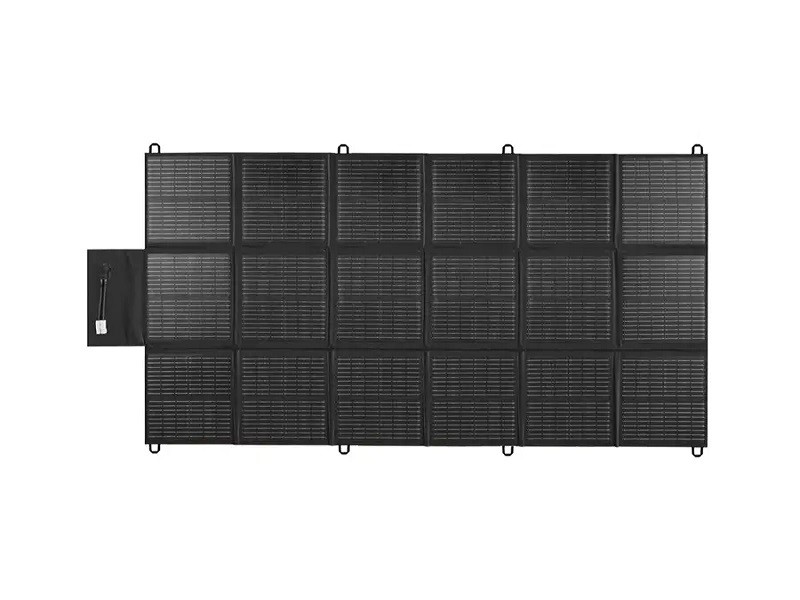

Foldable Solar Panel Solar Blanket



We are supplying 80W-420w Portable Foldable Solar Blanket. Lightweight and compact makes it a powerful portable charging source for your 4WD, RV, or Marine batteries.We use waterproof cloth, which can better protect the products. Also, the use of highly efficient mono solar cells can ensure the conversion rate up to more than 22.5%. We are dedicated to make high quality products to satisfy customer’s usage.
The Portable Foldable Solar Blanket is made for off-grid adventure. Power your fridge, lights, devices, and other campsite accessories.Products can be designed according to customer’s request.







Foldable Solar Blanket



Solar BlanketCSSB

Folding Module

CSSB-F6-120W

CSSB-F6-160W

CSSB-F6-200W

CSSB-F9-300W

CSSB-420W

Encapsulation

ETFE/EVA I Cell/EVA/ Fiberglass

Maximum Power Pmax

120W

180W

200W

300W

420W

Maximum Power Voltage Vmp)

20.5V

20.5V

20.5V

20.5V

20.5V

Maximum Power Current(lmp)

5.85A

7.8A

9.75A

14.63A

20.48A

Open Circuit Voltage (Voc)

24.19V

24.19V

24.19V

24.19V

24.19V

Short Circuit Current(Isc)

6.43A

8.58A

10.72A

16.09A

22.52A

Cell Efficiency

23.5%

23.5%

23.5%

23.5%

23.5%

Dimension

1290x750x15mm

1450x800x15mm

1390x1115x15mm

1940x1115x15mm

2520x1115x15mm

Dimension When Folded

375x360x50mm

410x400x50mm

550x372x50mm

550x372x70mm

560x372x90mm

Weight

3.5KG

4.9KG

5.5KG

9KG

10.5KG

Tolerance

±3%

Max System Open Circuit Voltage

1000V

Controller

PMW/MPPT

Operate Temperature Range

-40+85

Relative Humidity

0~100%





Accessories

   1. PMW controller x1

   2. 5 meter cable with Anderson or MC4 connector x1

   3.30cm cable of alligator clp with Anderson connector x1

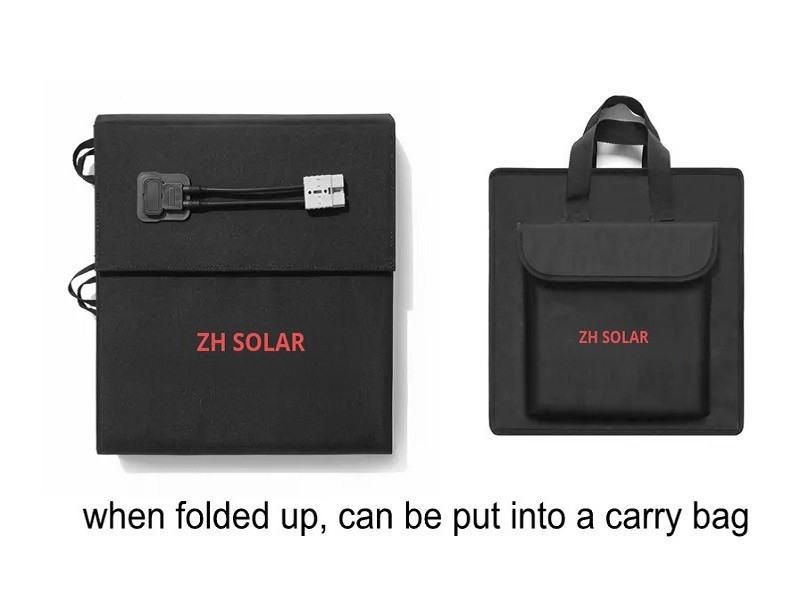

   4. Carry bag x1

   5. User Manual x1 ZH solar

   6. OEM /ODM

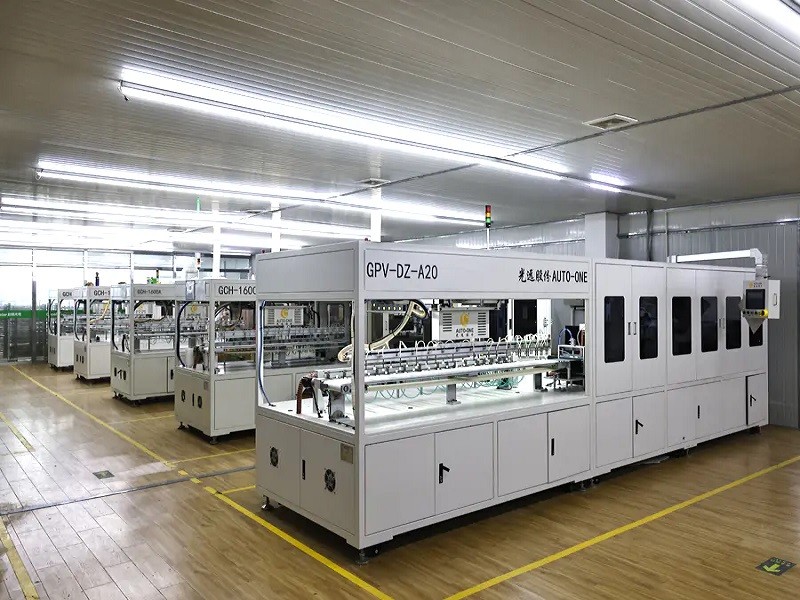

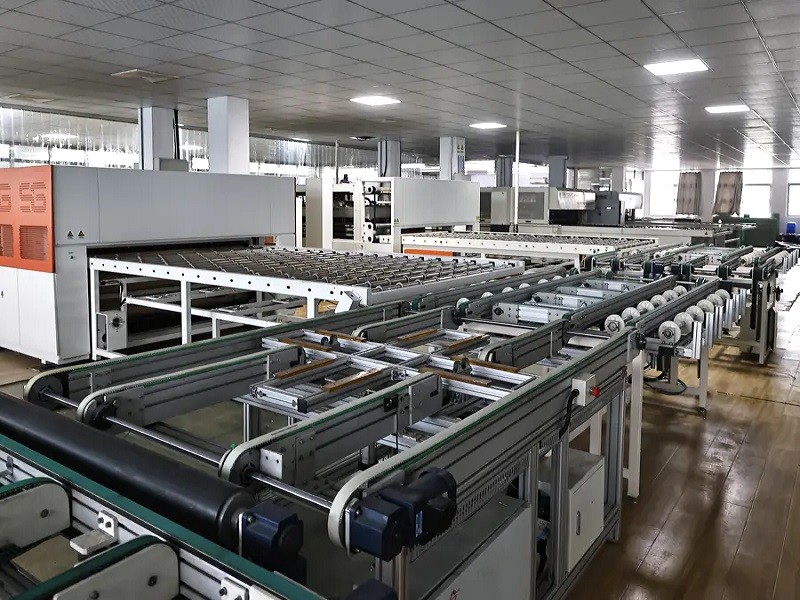

Production Line & Packing









leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
