60 G12 Half Cell MBB 585-605W PV Module

60 G12 Half Cell MBB 585-605W PV Module
60 G12 Half Cell MBB 585-605W PV Module

60 G12 Half Cell MBB 585-605W PV Module

Special cutting and soldering half-cell technology with multi-busbar configuration of the solar panel offers higher conversion efficiency and power output, lower hotspot risk, better temperature-dependent performance, reduced shading effect on the energy generation, as well as enhanced tolerance for mechanical loading.

  • Cell :

    6x20 mono solar cell
  • Junction Box :

    IP≧68, TUV&UL
  • Cable&Connector :

    4mm², TS4/MC4-EVO2
  • Cable Length :

    280mm or as customer's requirements
  • Weight :

    30.9kg
  • Packing :

    31pcs/pallet
  • Loading Capacity :

    512pcs/40HC
Product Datasheet

60 G12 Half Cell MBB 585-605W PV Module



Grade A solar cells to ensure all are high efficient.

Good price, low cost as industry chain integration with scale effect.

A fully automated production process, each solar panel is tested strictly.

More than 10 years’ experience in PV industry, with 2,500 square meters production base.

Please don’t hesitate to contact us to get a free quotation or any other wondering thing at any time.



Key Features

MBB Half Cut Cell With PERC Technology

Higher Power Output

Better Low-light Performance

Less Shading Effect

PID Resistance



Technical Specifications

Module Type

ZHS3-120-585M

ZHS3-120-590M

ZHS3-120-595M

ZHS3-120-600M

ZHS3-120-605M

Test Environment

STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

Maximum Power (W)

585

443

590

447

595

451

600

454

605

458

Open Circuit Voltage (V)

40.9

38.5

41.1

38.7

41.39

38.9

41.5

39.1

41.7

39.3

Short Circuit Current ( A)

18.37

14.81

18.42

14.85

18.47

14.88

18.52

14.92

18.57

14.96

Maximum Power Voltage (V)

33.8

31.5

34.0

31.7

34.2

31.9

34.4

32.0

34.6

32.2

Maximum Power Current ( A)

17.31

14.05

17.35

14.09

17.40

14.13

17.44

14.18

17.49

14.22

Module Efficiency (%)

20.7

20.77

21.0

21.2

21.4

Tolerance

0-+5W

Maximum System Voltage

1500V(IEC)

Temp. Coeff. of Voc

-0.270%/°C

Temp. Coeff. of lsc

0.04%/°C

Temp. Coeff. of Pm

-0. 340 %/°C

Operating Temperature

40 to 85°C

Nominal Operating Cell Temperature (NOCT)

452 °C

Max. Series Fuse

30A

STC: Irradiance 1000W/ /'    Cell Temperature 25 °C    AM=1.5     NOCT: Irradiance  800W/'    Ambient Temperature 20°C    AM=1.5   Wind Speed 1m/s





Products Packaging&Loading



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
References

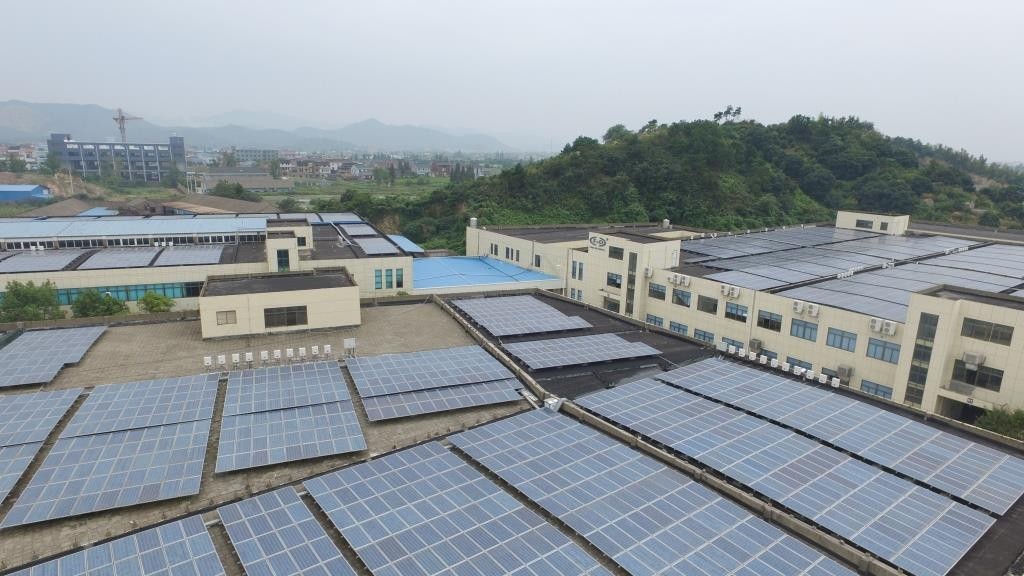

  • 1.9MW Industrial Rooftop PV Power Plant

      1.9MW Industrial Rooftop PV Power Plant

    Read More

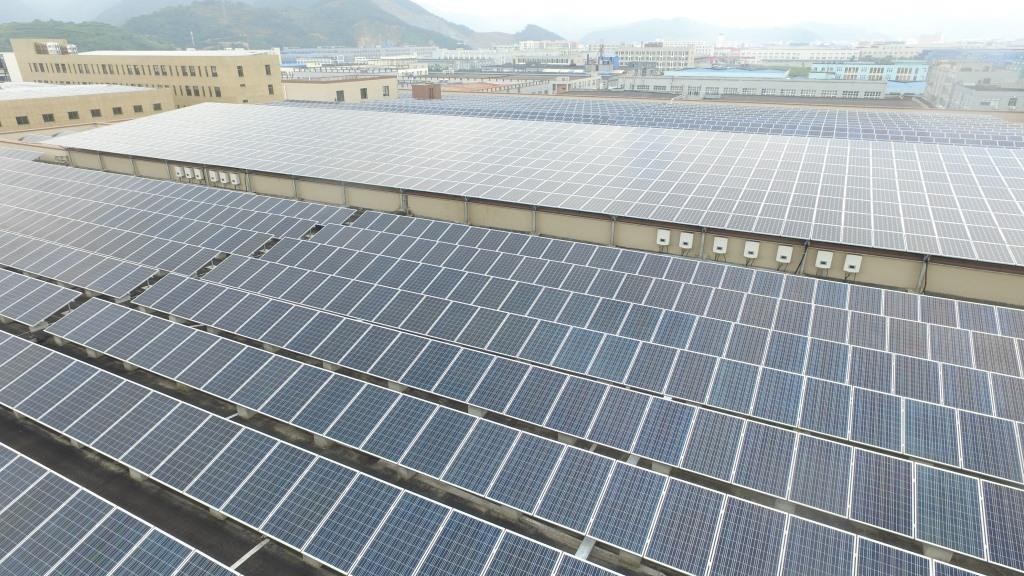

  • 1.6MW Industrial Rooftop PV Power Plant

      1.6MW Industrial Rooftop PV Power Plant

    Read More
  • 600kW Industrial Rooftop PV Power Plant

    600kW Industrial Rooftop PV Power Plant

    Read More

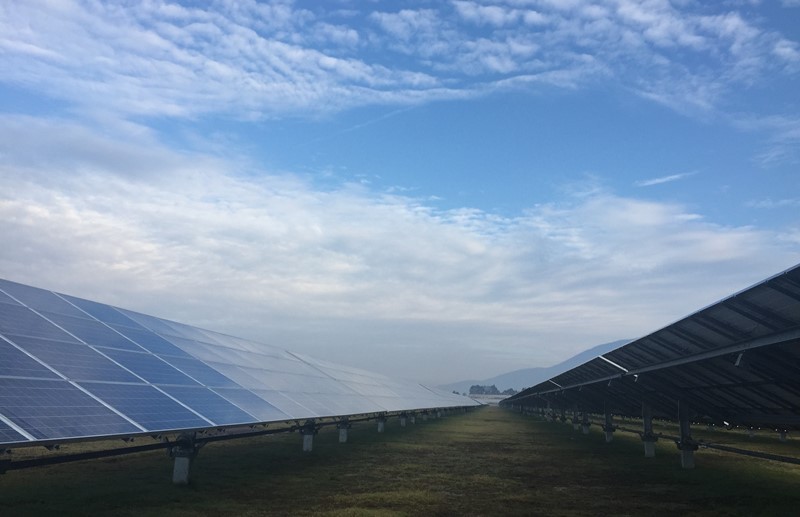

  • 20MW Ground-mounted PV Power Plant
