60 M6 MBB 355-385W Solar PV Module

60 M6 MBB 355-385W Solar PV Module
60 M6 MBB 355-385W Solar PV Module

60 M6 MBB 355-385W Solar PV Module

Special cutting and soldering half-cell technology with multi-busbar configuration of the solar panel offers higher conversion efficiency and power output, lower hotspot risk, better temperature-dependent performance, reduced shading effect on the energy generation, as well as enhanced tolerance for mechanical loading.

  • Cell :

    6x20 mono solar cell
  • Junction Box :

    IP≧68, TUV&UL
  • Cable&Connector :

    4mm², TS4 / MC4-EV02
  • Cable Length :

    300mm or as customer's requirements
  • Weight :

    19.5kg/43lbs
  • Packing :

    30pcs/pallet
  • Loading Capacity :

    180pcs/20GP 780pcs/40HC
Product Datasheet

60 M6 MBB 355-385W Solar PV Module



Grade A solar cells to ensure all are high efficient.

Good price, low cost as industry chain integration with scale effect.

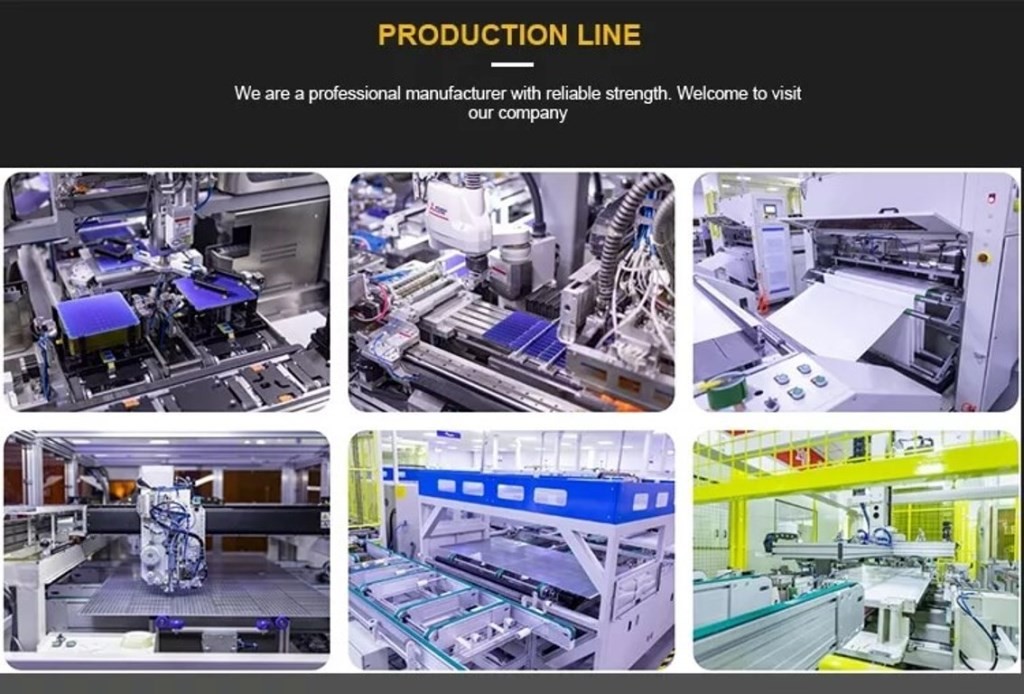

A fully automated production process, each solar panel is tested strictly.

More than 10 years’ experience in PV industry, with 2,500 square meters production base.

Please don’t hesitate to contact us to get a free quotation or any other wondering thing at any time.



Key Features

MBB Half Cut Cell With PERC Technology

Higher Power Output

Better Low-light Performance

Less Shading Effect

PID Resistance



Technical Specifications

Module Type ZHS1-120-355M ZHS1-120-360M ZHS1-120-365M ZHS1-120-370M ZHS1-20-375M ZHS1-120-380M ZHS1-120-385M
Test Environment STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (W) 355 265.1 360 268.8 365 272.6 370 276.3 375 280.0 380 283.8 385 287.6
Open Circuit Voltage (V) 40.3 37.8 40.5 38.0 40.7 38.2 40.9 38.3 41.1 38.5 41.3 38.7 41.5 38.9
Short Circuit Current ( A) 11.25 91.0 11.35 9.17 11.43 92.5 11.52 9.32 11.60 9.38 11.69 9.45 11.78 9.62
Maximum Power Voltage (V) 33.8 31.5 34.0 31.7 34.2 31.8 34.4 32.0 34.6 32.2 34.8 32.5 35.0 32.8
Maximum Power Current ( A) 10.51 8.43 10.59 8.49 10.68 8.56 10.76 8.63 10.84 86.9 10.92 8.76 11.00 8.83
Module Efficiency (%) 19.5 19 8 20.0 20.3 20.6 20.9 21.2
Tolerance 0-+5W
Maximum System Voltage 1500V(IEC)
Temp. Coeff. of Voc -0.270 %/°C
Temp. Coeff. of lsc 0.048%/°C
Temp. Coeff. of Pm -0. 350 %/°C
Operating Temperature 40 to 85°C
Nominal operating cell temperature (NOCT) 45土2 °C
Max. Series Fuse 20A
STC: Irradiance 1000W/ /m²'    Cell Temperature 25 °C    AM=1.5     NOCT: Irradiance  800W/m²'    Ambient Temperature 20°C    AM=1.5   Wind Speed 1m/s





Products Packaging&Loading



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
References
  • 300kW Commercial Rooftop PV Power Plant

    300kW Commercial Rooftop PV Power Plant

    Read More
  • 30kW Commercial Rooftop PV Power Plant

     30kW Commercial Rooftop PV Power Plant

    Read More

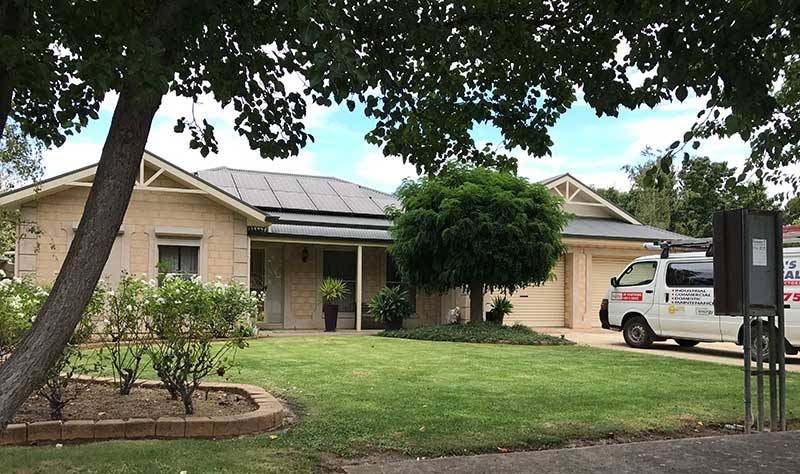

  • 6kW Residential Rooftop PV Power Plant
