Solar Tile not only has the functions of waterproofing and heat insulation, solar roof tiles photovoltaic but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.

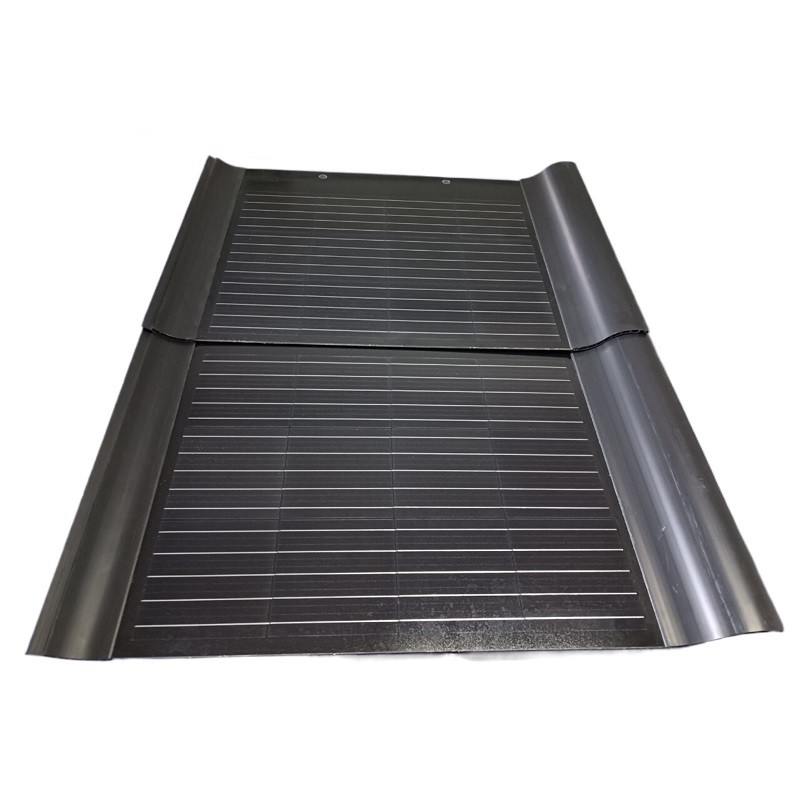

60W Single Glass Solar Tile
Environmentally friendly building materials. The combination of traditional building materials and monocrystalline siliconsolar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Parameters
|
Rate Maximum Power(Pmax/W) |
60W |
|
Current at Pmax(lmp/A) |
9.68A |
|
Voltage at Pmax(Vmp/V) |
6.2V |
|
Short Circuit Current(Isc/A) |
10.18A |
|
Open Circuit Voltage(Voc/V) |
7.42V |
|
Power Tolerance |
0-3W |
|
Weight |
6KG |
|
Maximum System Voltage |
600VDC |
|
Dimensions |
883x600x39mm |
|
Max Series Fuse |
10A |
|
Fireproof Performance |
Glass A |
|
Electrical Parameters at STC |
E=1000W/㎡，AM=1.5 TC=25℃ |
Packing
