Container Energy Storage System(ESS)

Container Energy Storage System(ESS)
Container Energy Storage System(ESS)

Container Energy Storage System(ESS)

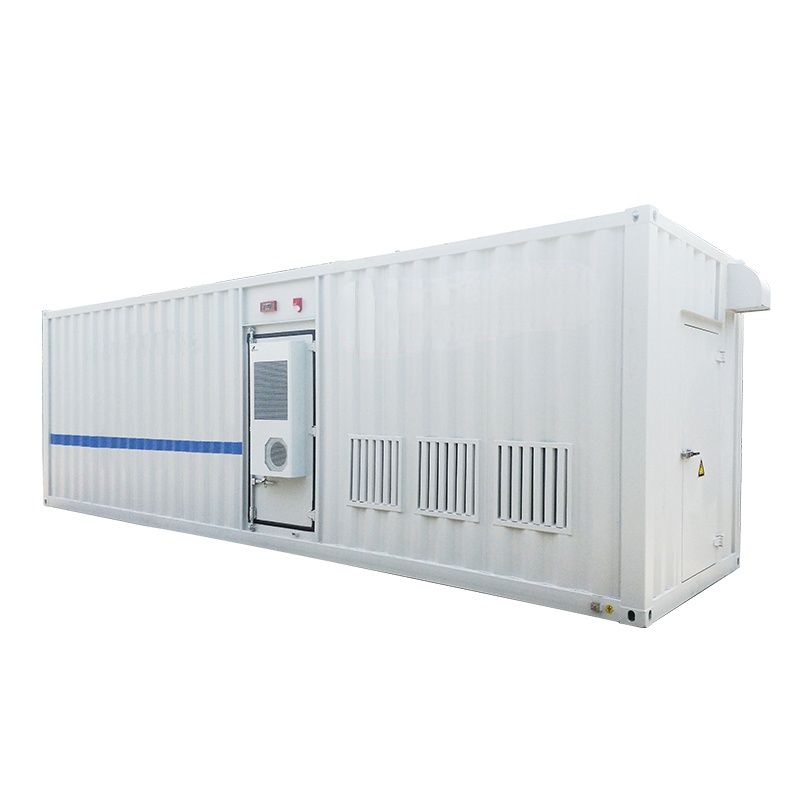

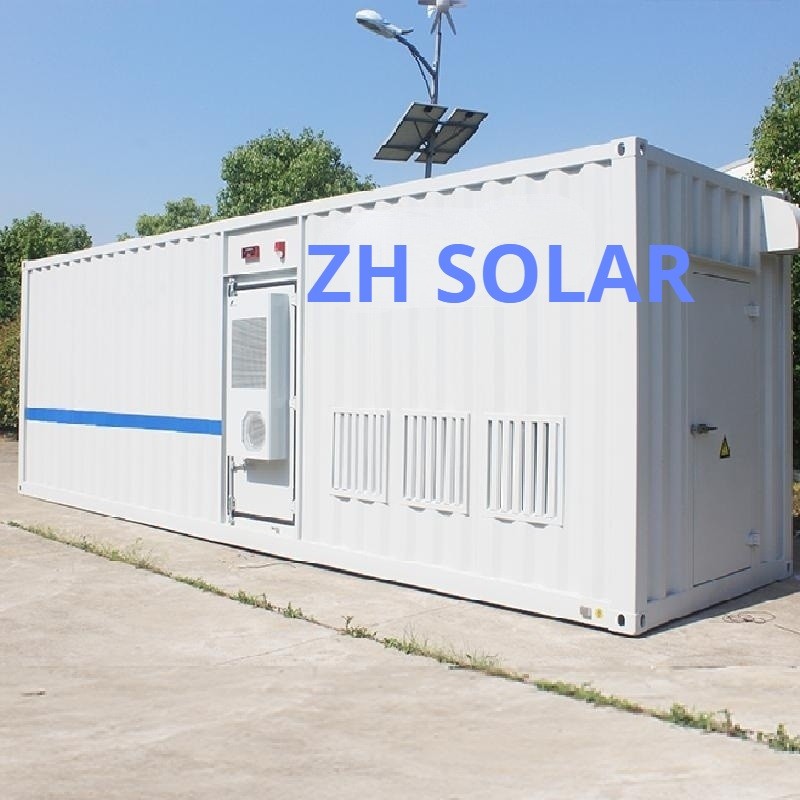

10/20/40 ft container energy storage system



Microgrid,PV power station,Wind power station,Industrial and commercial,

Grid side,Hybrid charging

Product Datasheet

Container Energy Storage System

10 foot container energy storage system

20 foot container energy storage system



40 foot container energy storage system

Product Features

Integrated & standardized energy storage system, easy to transport, install and maintain

Modular design, support system expansion

Famous manufacturer provide LFP cells with good lifespan over 10 years

All-round real-time monitoring and energy optimization management, fully guarantee the safety of the battery system

Multiple working mode, suitable for various applications

Intelligent temperature control, automatic balance management, effectively improve battery efficiency and life

Unattended, convenient EMS access, online real-time system monitoring

Support diesel generator access, switching between on-grid and off-grid (optional)

Three-phase 100% unbalanced load, strong load adaptability (optional)

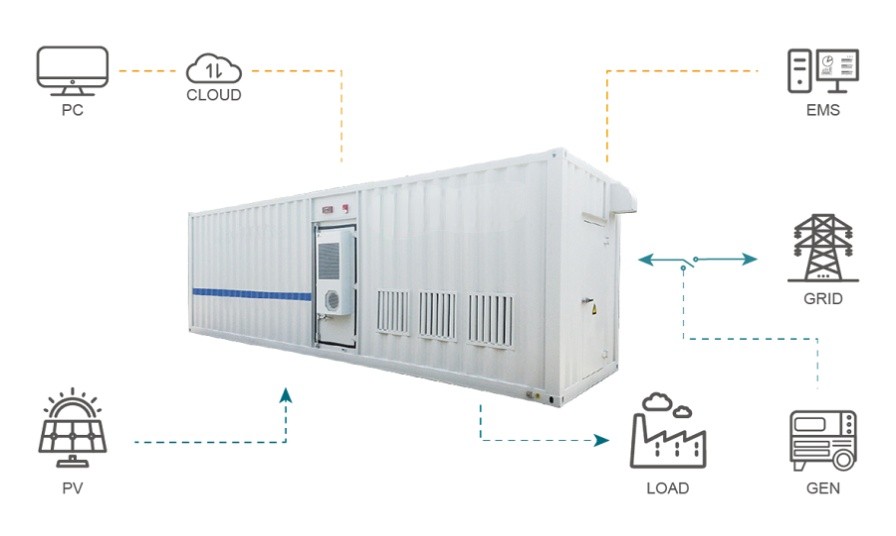

Product application scenario & schematic diagram





Container Energy Storage System Specifications



Model

10 ft container energy storage system

20 ft container energy storage system

40 ft container energy storage system

Battery



Discharge Rate

≤0.5C

Battery Type

Lithium Iron Phosphate

Nominal Voltage [V]

768

Operating Voltage Range [V]

672~864

Cell Rated Capacity [Ah]

280

DC Side Nominal Capacity [kWh]

215

860

2150

Composition

1P240S*1P

1P240S*4P

1P240S*10P

AC Date



Rated Charge/Discharge Power [kW]

100

500

1260

Max. AC Current [A]

159

794

1819

Rated Output Voltage [V]

400

Rated Frequency [Hz]

50/60

THDu

<3% (Linear Load)

Unbalanced Load

100%

General Date



Ingress Protection

IP54

Communication

RS485,CAN

Communication Protocol

Modbus,IEC104

Ambient Temperature [℃]

-25~+50

PCS Cooling Method

Temperature controlled smart fan cooling

Battery Cooling Method

Air conditioning cooling/Liquid cooling system

Fire Fighting System

Yes

Altitude [m]

5000 (>3000 Derating)

Relative Humidity

0 ~ 95%,non-condensing

Weight [T]

6.5

15

29

Dimension (W*D*H) [mm]

2991*2438*2591

6096*2438*2591

12192*2438*2591



Container Energy Storage Battery Cabinet



Model

10 ft container energy storage battery cabinet

20 ft container energy storage battery cabinet

40 ft container energy storage battery cabinet

Battery



Discharge Rate

≤0.5C

Battery Type

 Lithium Iron Phosphate

Nominal Voltage [V]

768

Operating Voltage Range [V]

672~864

Cell Rated Capacity [Ah]

280

DC Side Nominal Capacity [kWh]

645

1290

3010

Composition

1P240S*3P

1P240S*6P

1P240S*14P

General Date



Ingress Protection

IP54

Communication

RS485,CAN

Communication Protocol

Modbus,IEC104

Ambient Temperature [℃]

-20~+55

Battery Cooling Method

Air conditioning cooling/Liquid cooling system

Fire Fighting System

Yes

Altitude [m]

5000 (3000 derating)

Temperature Range℃

-30-+55

Relative Humidity

0.95%,no condensation

Weight [T]

8.4

16

30.5

Dimension (W*D*H) [mm]

2991*2438*2591

6096*2438*2591

12192*2438*2591
