Energy Bettery(HV)51.2KWH ESS-S01
Product Description

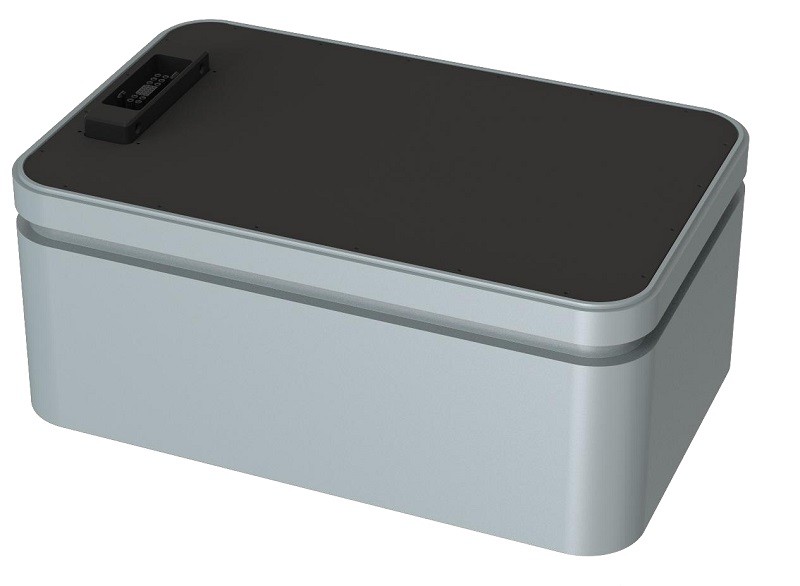

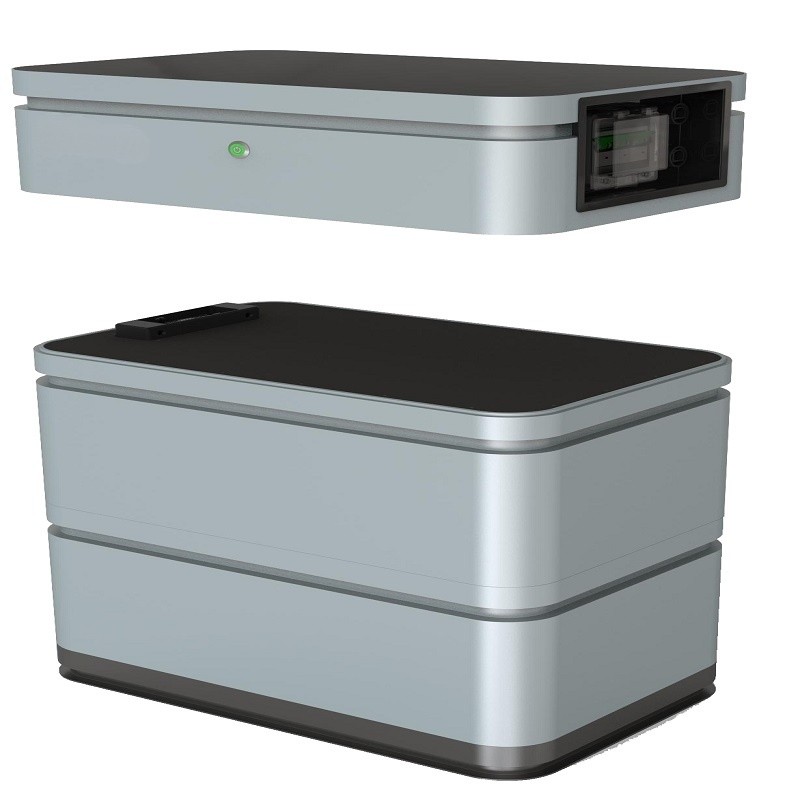

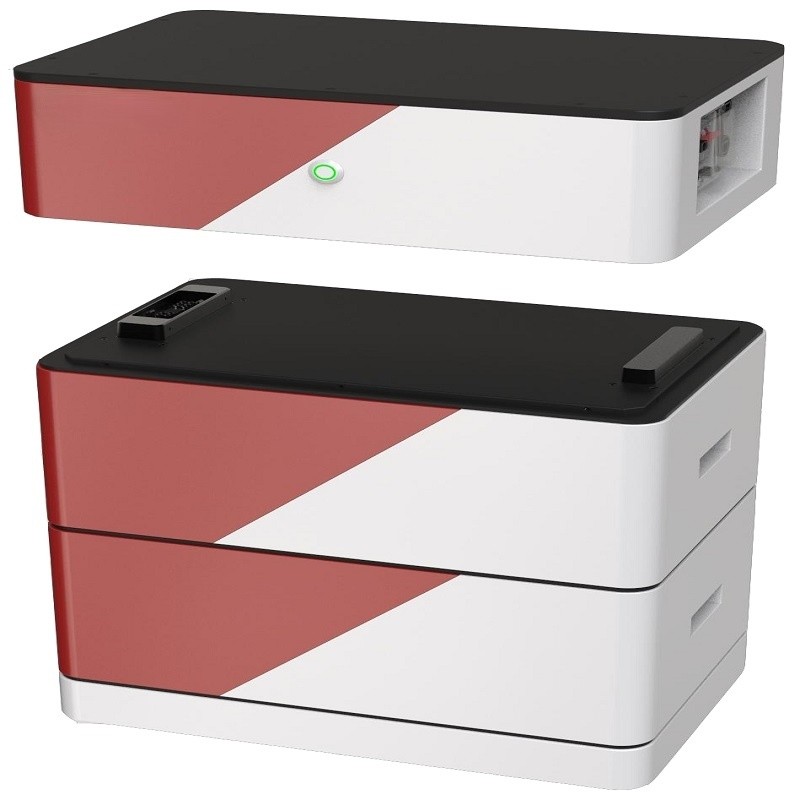

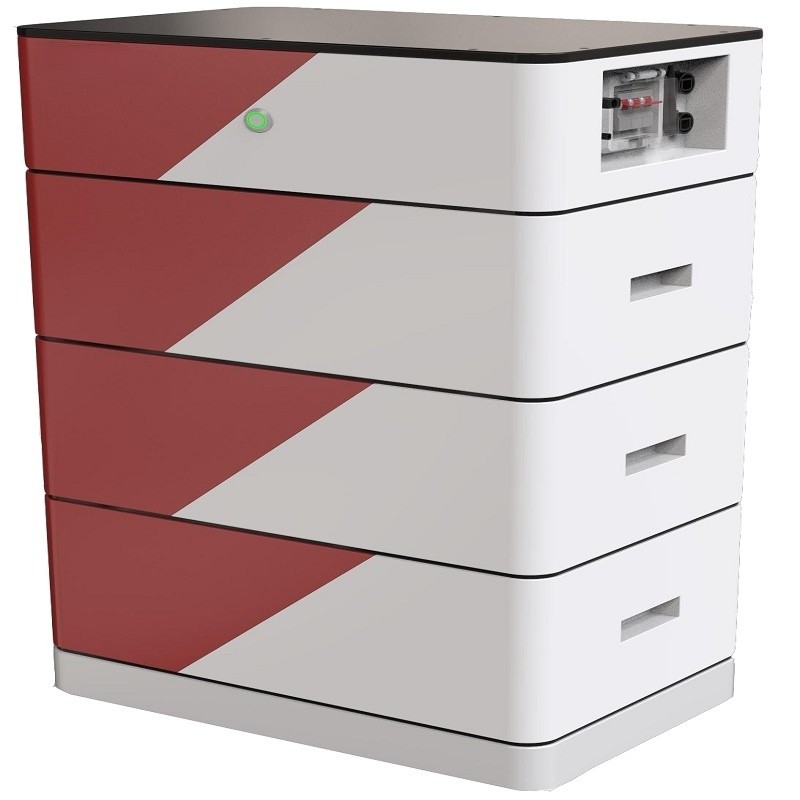

HESS-S01 is a modularly expandable Lithium-ion
battery storage system. The system can be built as quickly as a stack of bricks. The system composed by brick battery packs and energy control box. The brick battery packs are stacked one by one, and the energy control box is placed on the top of the brick battery pack, it is easy to add up all these to form a energy system for users.
Parameters
|
Battery Pack |
General Information |
Parameters |
Remarks |
|
|
Cell Type (Ah) |
LFP-50 |
25±2℃,0.5C, New Battery State |
|
Electric Config |
IP32S |
|
|
|
Rated Voltage (V) |
102.4 |
|
|
|
Operating Voltage Range (V) |
80.0~116.8 |
Temperature T > 0'C, Theoretical Value |
|
|
Standard Capacity (Ah) |
50 |
25±2℃,0.5C, New Battery State |
|
|
Total Energy (Wh) |
5120 |
25±2℃,0.5C, New Battery State |
|
|
Operating Temperatur (℃) |
0~55 |
Charging |
|
|
-20~55 |
Discharge |
||
|
Size (mm) |
550土0.8 |
Length |
|
|
350士0.6 |
Width |
||
|
230士 1.0 |
Height |
||
|
Weight (Kg) |
51.0+0.5 |
|
|
|
Self Discharge |
≤3%/per month |
25℃，50%SOC |
|
|
Static Voltage Difference (mV) |
20 |
Battery System Parameters
|
General information |
Parameter |
Remarks |
|
Maximum Energy (KWh) |
28.26 |
6 Battery Pack |
|
Number of Battery Pack |
2≤N≤6 |
N= Battery Pack Quantity |
|
Maximum Size (mm) |
550×350×1570 |
Width x Depthx Height |
|
Maximum Weight (Kg) |
310 |
N=6 |
|
Operating Temperature（°C） Relative Humidity（RH） |
0~55 |
Charging |
|
-20~55 |
Discharging |
|
|
0~95% |
|
|
|
Maximum Working Altitude (m) |
3000 |
|
|
Protection Grade |
IP65 |
|
|
Cooling Method |
Natural Heat Dissipation |
|
|
PCS Communication Mode |
RS485 or CAN |
|
|
EMS Communication Mode |
TCP/IP |
|
