Off Grid ALL-IN-ONE Storage System

Off Grid ALL-IN-ONE Storage System
Off Grid ALL-IN-ONE Storage System
Off Grid ALL-IN-ONE Storage System

Off Grid ALL-IN-ONE Storage System

Off Grid 3KW  5KW



Villa,No electricity area,Residential electricity,Hospital,Museum,Farm,Hotel

Product Datasheet

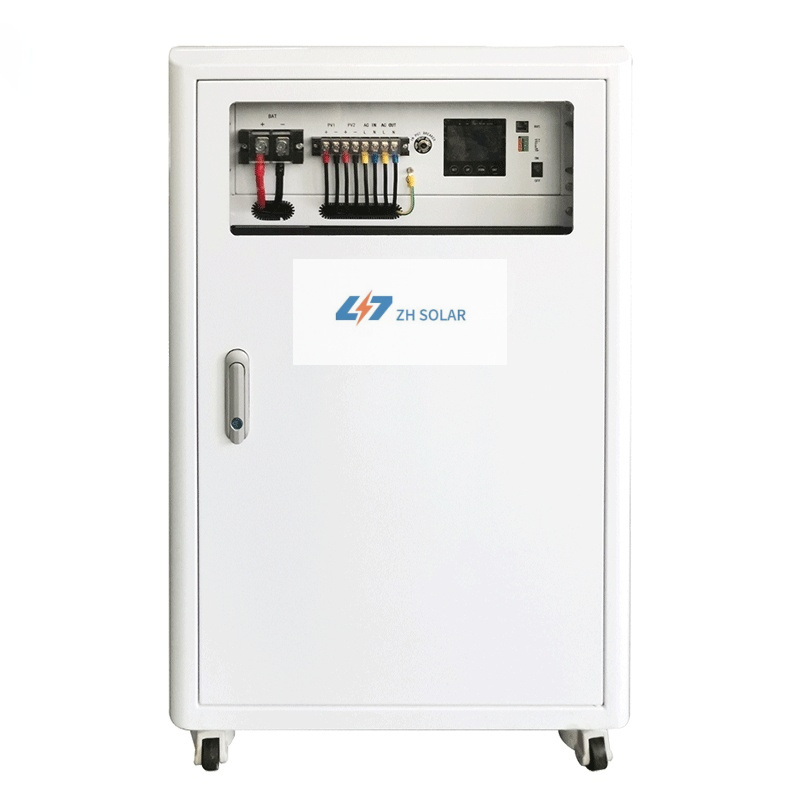

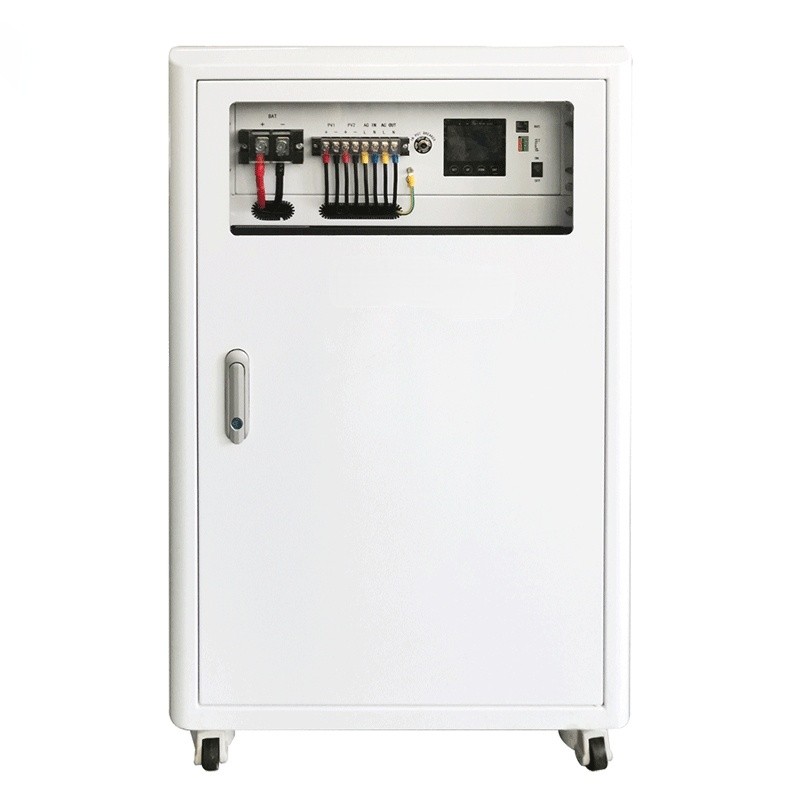

Off Grid ALL-IN-ONE Storage System



Product Features:

Compatible with various batteriesperfect protection function & strong environmental adaptability

Wide DC input voltage range design

Fully digital voltage and current double closed-loop control, advanced SPWM technology, output pure sine wave

With two output modes of mains power bypass and inverter output, with UPS function

Full power UPS function, staged SOC design

Charging mode optional: utility/ solar power priority, solar charging, hybrid charging

With power saving mode function, reduce no-load loss

Integrated design, Built-in controller, inverter, battery and BMS

With lithium-ion battery activation function, support lead acid battery, colloid battery

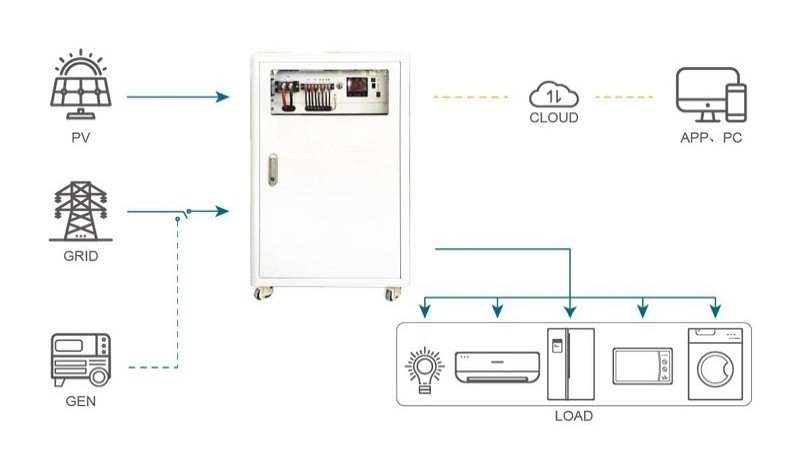

Product application scenario & schematic diagram











Technical Specifications



Model

LNS-3K5020-SD

LNS-5K8020-SD

AC Input (Bypass)





Rated Voltage [V]

220

Input Voltage Range [V]

(185~280) ±2%

Input Power Range [Hz]

47~55(50)/57~65(60)

Overload Current [A]

40

Max. Charging Current By Bypass [A]

20

Battery Input (Built-in)





Battery Type

Lithium

Rated Input Voltage [V]

48

Input Voltage Range [V]

45~60

No Load Loss [A]

<1

Stored Electric Energy [kWh]

5.12

10.24

PV Input Data





Max. Input Power [W]

2800

4500

Input Voltage Range [V]

60~145

Recommended PV String Voltage [V]

105

Charging mode

MPPT

Number Of MPPTs

1

1+1

Max. Charging Current By PV [A]

50

40+40

Inverter Output Data





Rated Input Power [VA]

3000

5000

Peak Output Power [kVA]

5000

8000

Output Voltage [V]

220±5%

Output Power [Hz]

50/60±1%

Output Waveform

Sine Wave

No Load Loss

<3% (Rated power)

THDi

<3%

Peak Efficiency

>90%

Overload Protection

"120%: turn off output in 1 minute,150%: turn off output in 10 seconds"

Other Data





Temperature Range [℃]

-20~+45

Relative Humidity

5%~95% (non-condensing)

Ingress Protection

IP20

Altitude [m]

≤5000 (>1000 derating)

Noise [dB]

≤55

Cooling Method

Smart fan cooling

Isolation Method

High Frequency Isolation

Display

LCD+LED

Communication Method

RS485-RTU

Dimensions (W*D*H) [mm]

600*550*720 (U-Box:482*462*133)

600*550*920 (U-Box:482*462*133)

Weight [kg]

75 (U-Box:15)

120 (U-Box:15)
