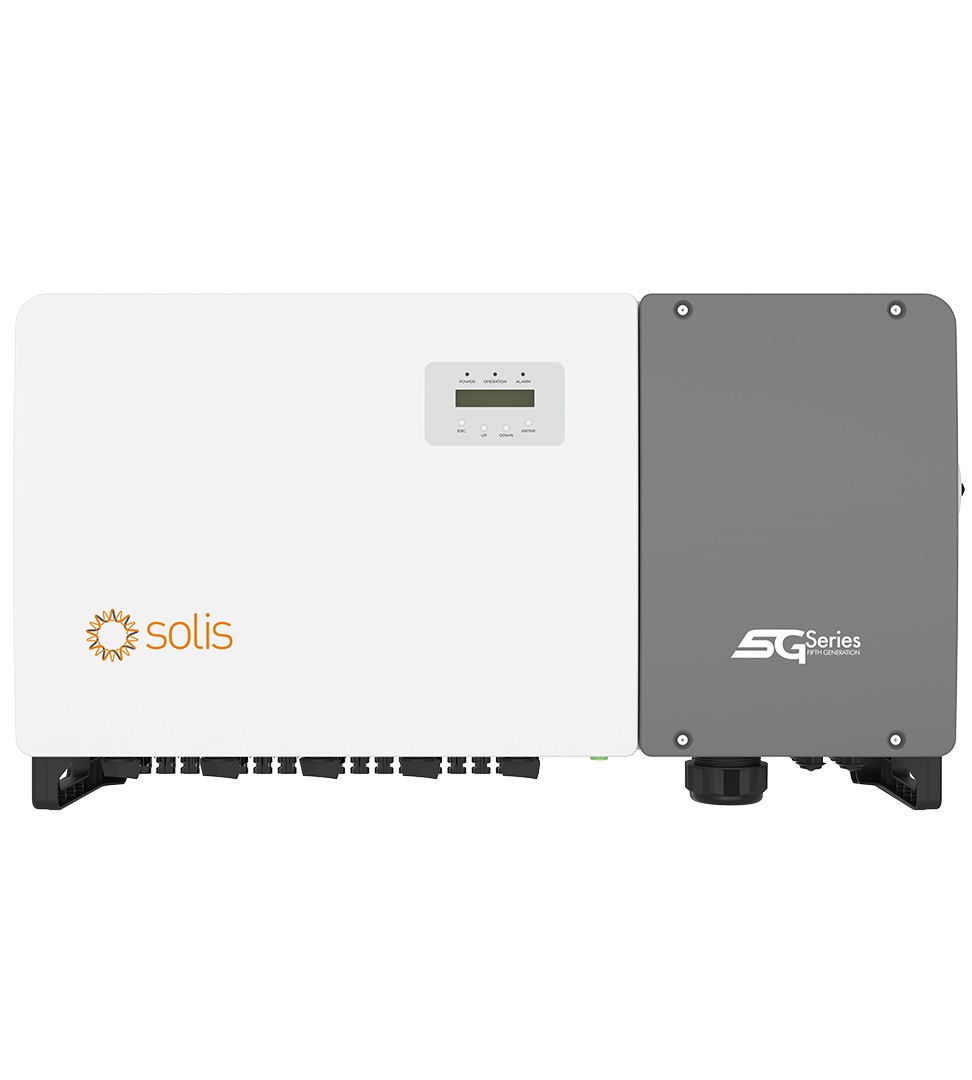

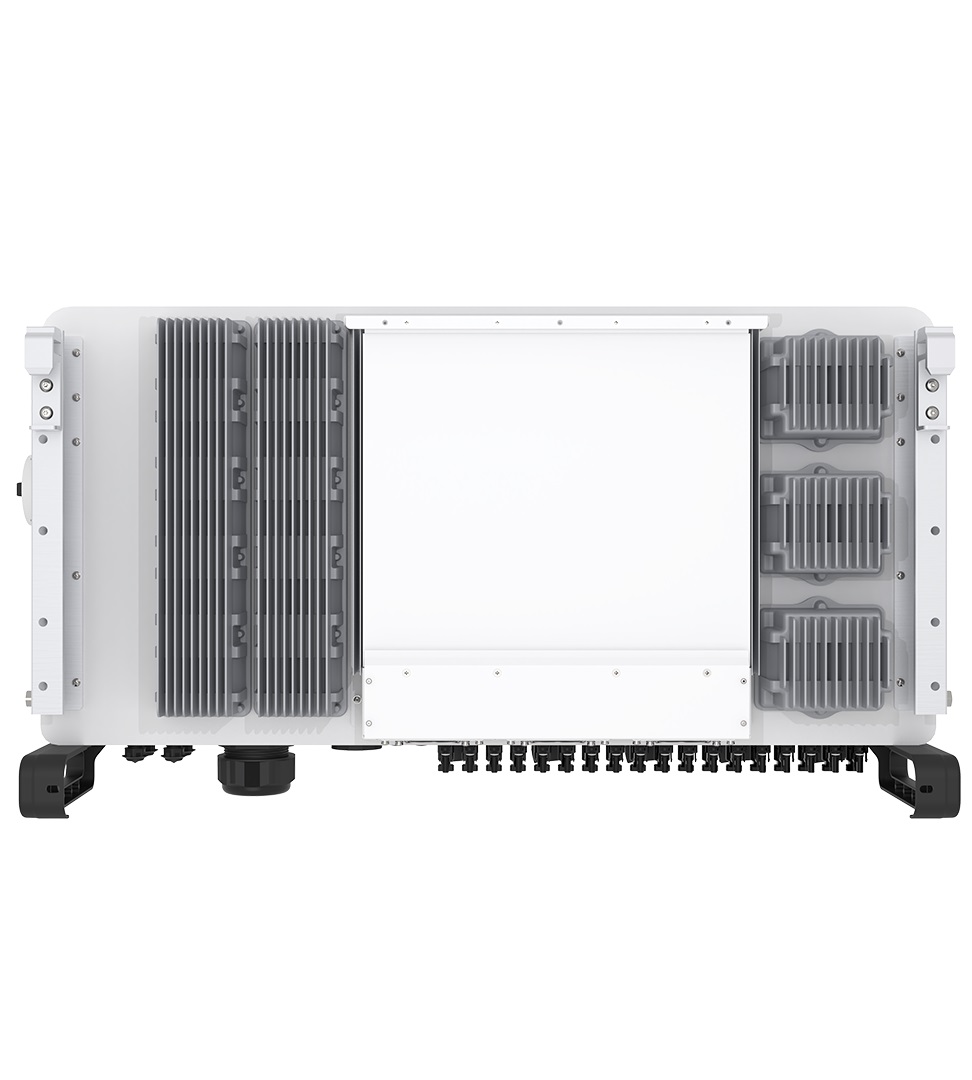

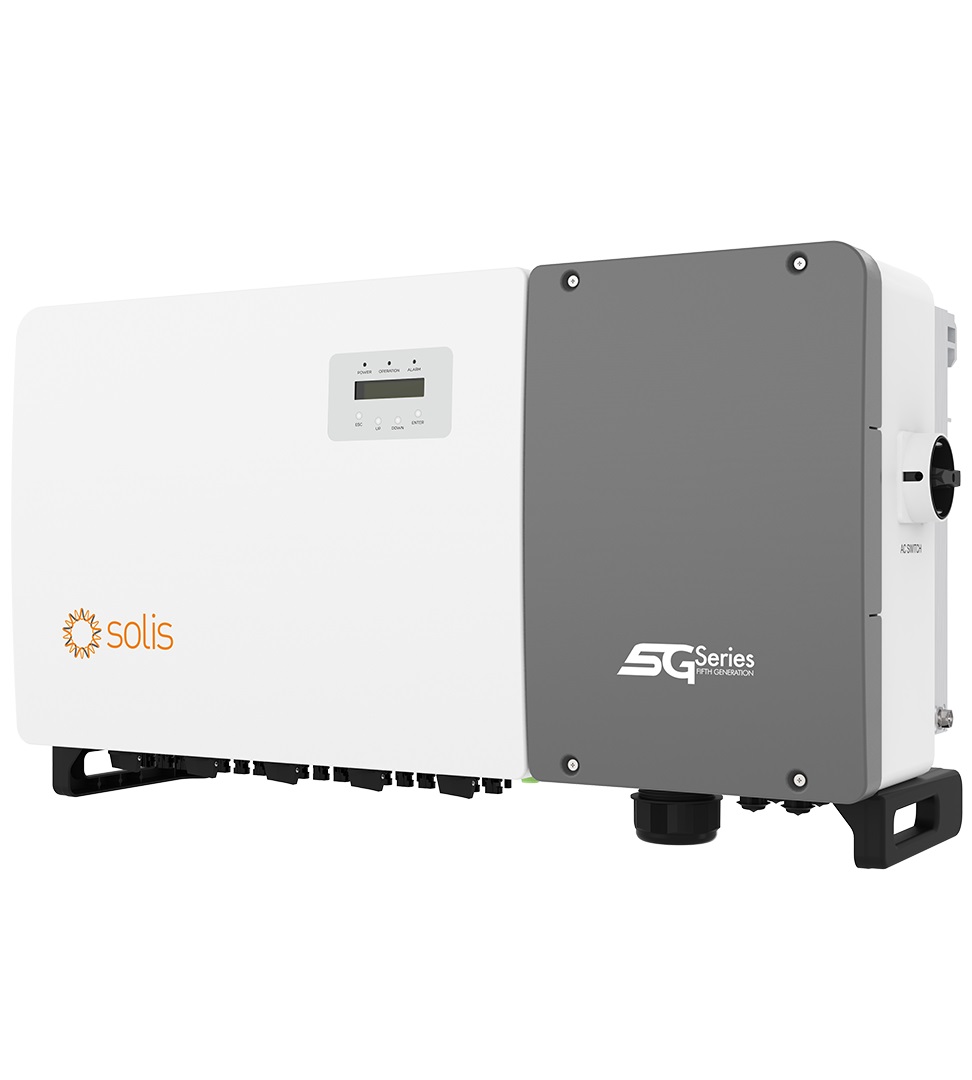

S5-GC(80-110)K

400V: 80K; 480V: 100K-HV; 540V: 110K-BHV

80-110kW three-phase series string inverter adopt 9/10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rateand higher generation efficiency. Max. 16 A per string, 150% DC overloading capability，remote and local intelligent IV scan function.

Product Datasheet

Product Details

80-110kW Three Phase Inverter

Leading Features

9/10 MPPTs, max. efficiency 98.8%
> 150% DC/AC ratio
IP66
Night SVG function
DC side supports "Y" connector
Power line communication (PLC) (optional)
Remote firmware upgrade with simple operation
Supports aluminium wire access to reduce cost
AFCI protection, proactively reduces fire risk
Intelligent string monitoring, smart I-V curve scan
Globally recognised branded componentry for longer life
Built-in PID recovery for better module performance (optional)
String current up to 16A, perfectly match large current bifacial modules

Technical Specifications

S5-GC80K S5-GC100K-HV S5-GC110K-BHV

Input DC

Max. input voltage:

1100 V
Rated voltage:

600 V
Start-up voltage:

195 V
MPPT voltage range:

180-1000 V
Max. input current:

9*32 A
Max. short circuit current:

9*40 A
MPPT number:

9
Max. input strings number:

18

Output AC

Rated output power:

80 kW
Max. apparent output power:

88 kVA
Max. output power:

88 kW
Rated grid voltage:

3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency:

50 Hz / 60 Hz
Rated grid output current:

121.6 A / 115.5 A
Max. output current:

133.7 A
Power factor:

>0.99 (0.8 leading - 0.8 lagging)
THDi:

<3%

Efficiency

Max. efficiency:

98.7%
EU efficiency:

98.3%

Protection

DC reverse-polarity protection:

Yes
Short circuit protection:

Yes
Output over current protection:

Yes
Surge protection:

DC Type II / AC Type II
Grid monitoring:

Yes
Anti-islanding protection:

Yes
Temperature protection:

Yes
Strings monitoring:

Yes
I/V Curve scanning:

Yes
Integrated AFCI (DC arc-fault circuit protection):

Yes (Activation required)
Integrated PID recovery:

Optional
Integrated DC switch:

Yes
Integrated AC switch:

Optional

General Data

Dimensions (W*H*D):

1050*567*314.5 mm (with AC switch)
Weight:

85 kg
Topology:

Transformerless
Self-consumption (night):

<2 W
Operating ambient temperature range:

-30 ~ +60°C
Relative humidity:

0-100%
Ingress protection:

IP66
Cooling concept:

Intelligent redundant fan-cooling
Max. operation altitude:

4000 m
Safety/EMC standard:

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Grid connection standard:

G98 or G99, VDE-AR-N 4105 / VDE-AR-N 4110 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530

Features

DC connection:

MC4 connector
AC connection:

OT terminal (max. 185 mm²)
Display:

LCD
Communication:

RS485, Optional: Wi-Fi, GPRS, PLC
