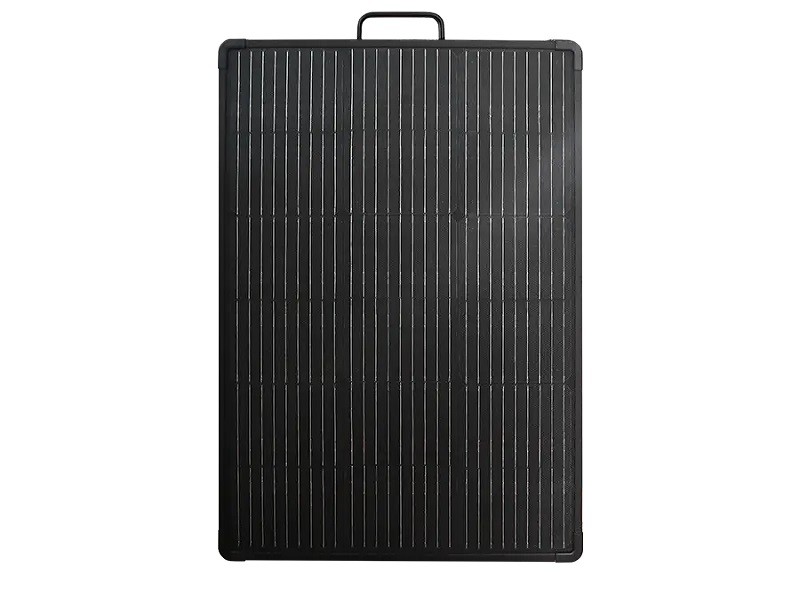

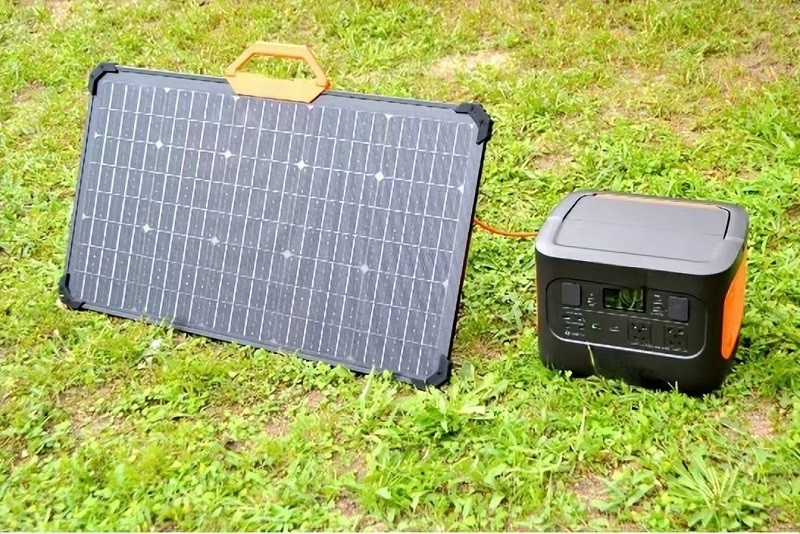

This 120w-320w Super Thin Foldable Solar Panel is definitely your good choice for charging your portable power station and batteries.
Super Thin Foldable Solar Panel
It is using the newest Mono solar cells, the efficiency can be up to 23% .ETFE surface material is imported from Japan, compared with PET, ETFE has the performance of self-cleaning, scratch resistance, longer lifespan. It replaces the traditional tempered glass, making the 120w-320w Super Thin Foldable Solar Panel light weight. The ETFE laminated solar panel is assembled with aluminum alloy frame and adjustable supporting legs, making the product much stronger than that sewed with fabric. The frame thickness is only 17mm, making the product not only strong, but also portable, suitable for going out for camping, RV travelling.

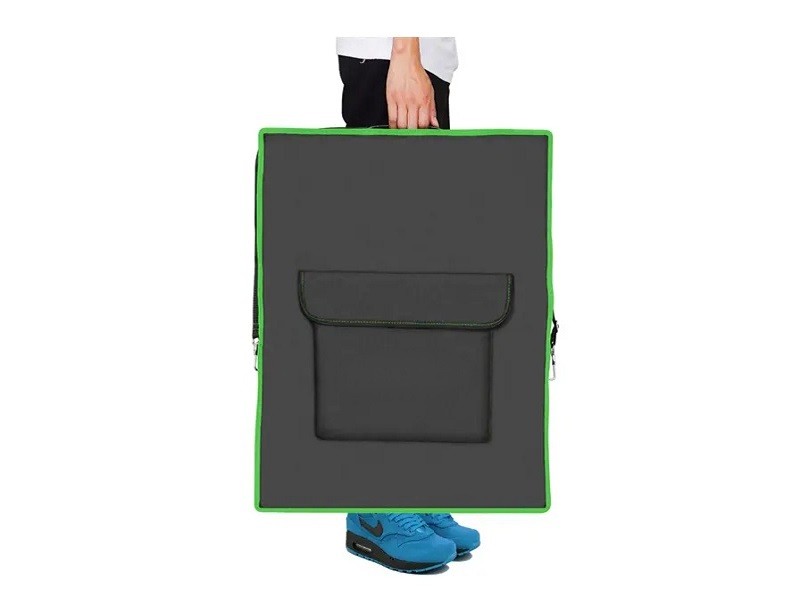

There’s a carry bag supplied for protecting the solar panel and store accessories. The solar panel output connector and accessories such as solar regulator, extension cables can be customized.
|
ZHSOLAR SUPER THIN SOLAR PANEL (CSST) |
|||||
|

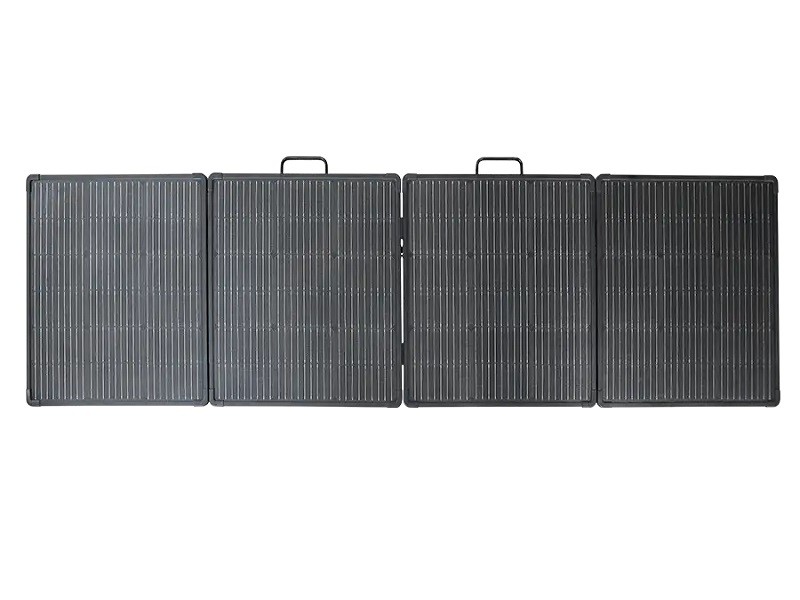

Folding Module |
CSST-F2-100W |
CSST-F2-160W |
CSST-F4-20OW |
CSST-F4-280W |
CSST-F4-320W |
|
Encapsulation |
ETFE /EVA /Cell /EVA/Fiberglass |
||||
|
Maximum Power Pmax |
100W |
160W |
200W |
280W |
320W |
|
Maximum Power Voltage [Vmp] |
20.5V |
20.5V |
20.5V |
20.5V |
20.5V |
|
Maximum Power Current (Imp) |
4.87A |
7.8A |
9.75A |
13.65A |
15.6A |
|
Open Circuit Voltage (Voc) |
24.19V |
24.19V |
24.19V |
24.19V |
24.19V |
|
Short Circuit Current [lsc] |
5.35A |
8.58A |
10.72A |
15.01A |
17.16A |
|
Cell Efficiency |
23% |
23% |
23% |
23% |
23% |
|
Dimension |
555x1093x20mm |
790x1198x20mm |
555x2207x20mm |
710x2160x20mm |
790x2400x20mm |
|
Dimension When Folded |
555x545x40mm |
790x596x40mm |
555x545x80mm |
710x545x80mm |
790x596x80mm |
|
Weight |
4KG |
6KG |
7.8KG |
10.5KG |
11.2KG |
|
Tolerance |
±3% |
||||
|
Max System Open Circuit Voltage |
1000V |
||||
|
Controller |
PMW/MPPT |
||||
|
Operate Temperature Range |
-40*C~+85C |
||||
|
Relative Humidity |
0~100% |
||||
|
Accessories |
1. PMW controller x1 2.5 meter cable with Anderson or MC4 connector x1 3. 30cm cable of alligator clip with Anderson connector x1 4. Carry bag x1 5. User Manual x1 6. OEM/ODM |
||||

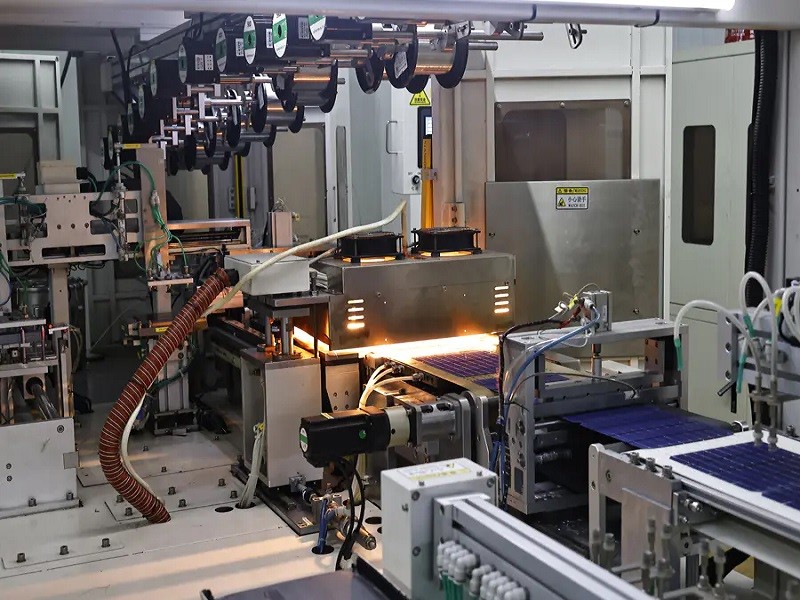

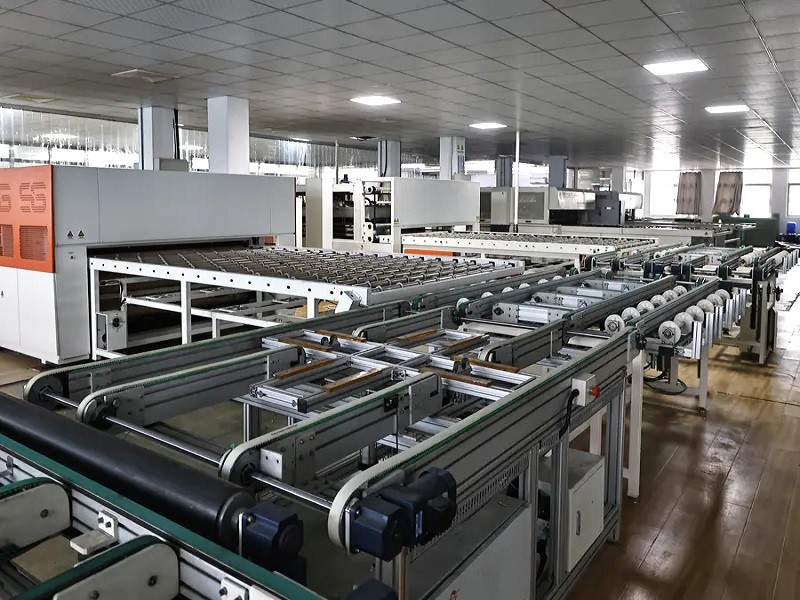

Production Line
